Ilyushin IL-46

1952

Back to the Virtual Aircraft Museum
  MARITIME PATROLVirtual Aircraft Museum / USSR / Russia / Ilyushin

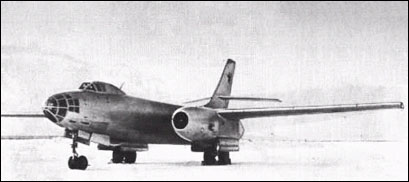

Ilyushin IL-46

Unsuccessful jet bomber design, similar to the IL-28 but actually a straight-wing development of the IL-30. Only two were built, because the Tu-16 was preferred.

Ilyushin IL-46

Specification
 ENGINE2 x 5000kg Lyulka AL-5
 WEIGHTS
  Take-off weight52425 kg115578 lb
  Empty weight26300 kg57982 lb
 DIMENSIONS
  Wingspan29.00 m95 ft 2 in
  Length24.50 m80 ft 5 in
  Height4.78 m16 ft 8 in
  Wing area105 m21130.21 sq ft
 PERFORMANCE
  Max. speed928 km/h577 mph
  Cruise speed700 km/h435 mph
  Ceiling12700 m41650 ft
  Range4970 km3088 miles
 ARMAMENT2 x 23mm cannon, 5000kg of bombs

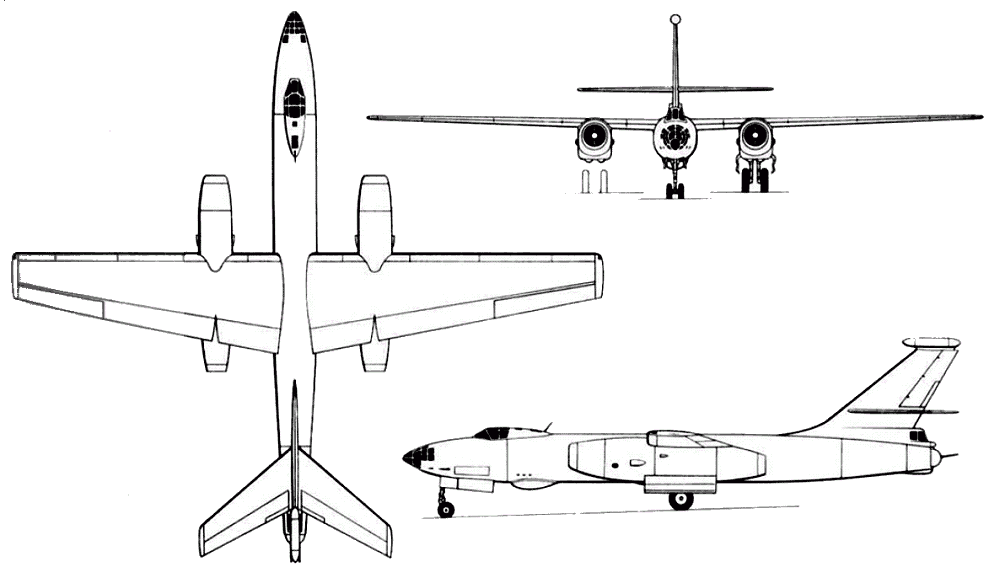

3-View
Ilyushin IL-46A three-view drawing (1000 x 578)
