Back Kamov agricultural autogyro
1972 - project

Kamov agricultural autogyro

Although the USSR was a world leader by then as far as the scale of agricultural flying is concerned, its agricultural aircraft inventory (the An-2 aeroplane and helicopters) did not have the potential to increase the total serviced area and reduce the cost of the work. Hence in the early '70s the Ministry of Civil Aviation issued an outline specification for the design - on a competitive basis - of a special aircraft capable of carrying 1500...1800kg of chemicals and reducing work costs by 20...25% as compared to the An-2.

A group of enthusiasts from the the OKB staff suggested that N.I.Kamov take part in the competition with an autogyro of the "flying chassis" type similar to the Ka-26 helicopter. The submitted project of an agricultural autogyro powered by a single turboprop engine with a pusher propeller met the specification. The new-generation autogyro was superior to a new STOL aeroplane in manoeuvrability and flight safety at low speeds and in low-level flight. It posed considerably more modest demands to runways. It had no equals among the contenders as far as cost-effectiveness and flight safety were concerned. Alas, the unusual project never got off the drawing board.

G.Kuznetsov "OKB Kamov - 50 years", 1999

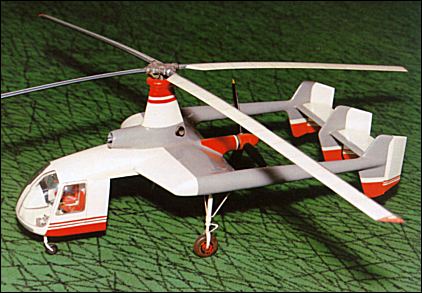

Kamov agricultural autogyro

Technical data for Kamov autogyro

Crew: 1, engine: 1 x TVD-10 turboshaft, rated at 691kW, main rotor diameter: 20.0m, fuselage length: 9.6m, height: 4.8m, width: 4.48m, take-off weight: 4130kg, internal payload: 1600kg, max speed: 220km/h, range with 1100kg payload and 30min fuel reserve: 600km

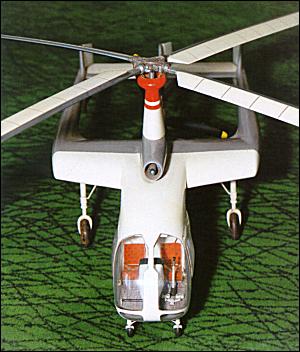

Kamov agricultural autogyro

Comments
charlie, e-mail, 15.04.2013

a very instering concept , and as two of the other coments say possable passanger aircraft, though i see it as having much more potencial then just agg work or passanger,or even fire fighting ,

p, e-mail, 11.06.2011

a passenger aircraft

MYRON, e-mail, 04.05.2008

This agricultural autogyro Aircraft could very well be rigged up to serve as a Wildlands "AIR ATTACK" FIRE-BOMBER
to Air-Drop Water (Or)Retardent agents.

morko, e-mail, 01.03.2008

Too bad this interesting design didn't materialised.
This autogyro can be more potent than what currently in service not limited to Russia.

James Baines, e-mail, 12.07.2007

Have they thought about trying this as a passenger aircraft, for at least six passengers.
