I.A.R. 822

1970

Back to the Virtual Aircraft Museum
  UTILITY AIRCRAFTVirtual Aircraft Museum / Romania / I.A.R.

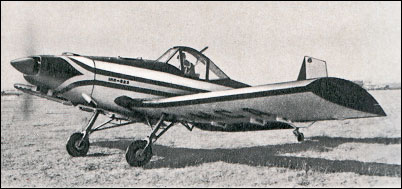

I.A.R. 822

The first I.A.R. 822 flew in 1970. Series production started in 1971.

3-View

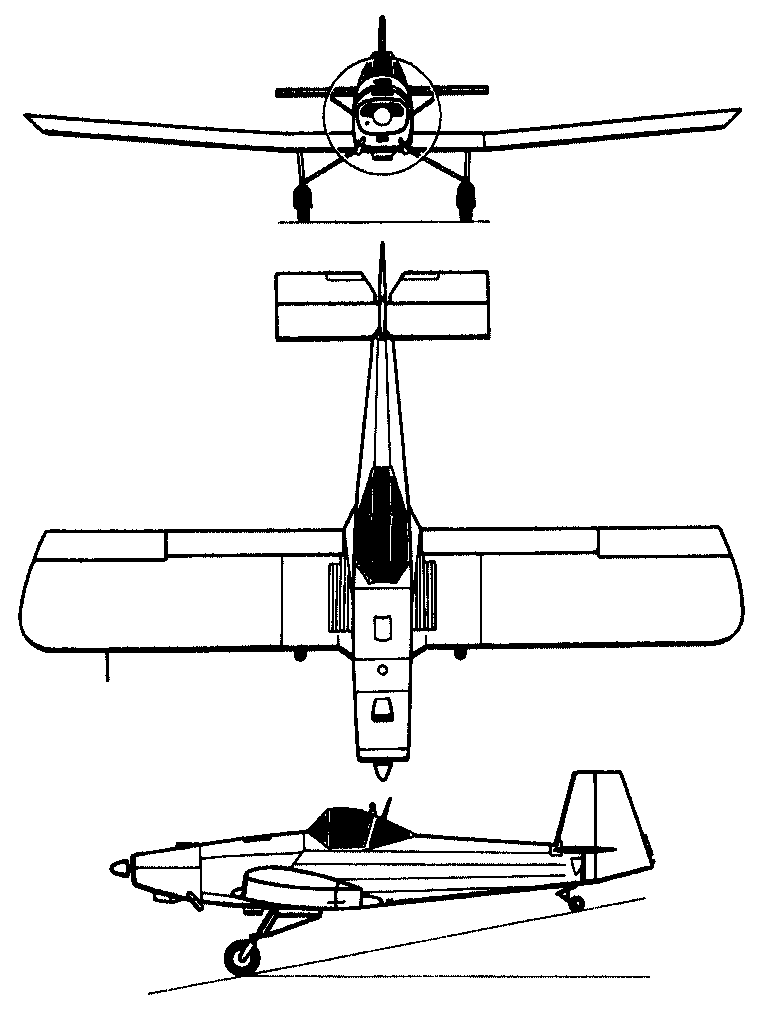

I.A.R. 822A three-view drawing (764 x 1018)

Specification
 ENGINE1 x Lycoming IO-540-G1D5, 215kW
 WEIGHTS
  Take-off weight1900 kg4189 lb
  Loaded weight1060 kg2337 lb
 DIMENSIONS
  Wingspan12.8 m42 ft 0 in
  Length9.4 m31 ft 10 in
  Height2.8 m9 ft 2 in
  Wing area26.0 m2279.86 sq ft
 PERFORMANCE
  Max. speed195 km/h121 mph
  Cruise speed170 km/h106 mph
  Ceiling4500 m14750 ft
  Range w/max.fuel500 km311 miles
