PZL TS-8 Bies

1955

Back to the Virtual Aircraft Museum
  BASIC TRAINERVirtual Aircraft Museum / Poland / PZL

PZL TS-8 Bies

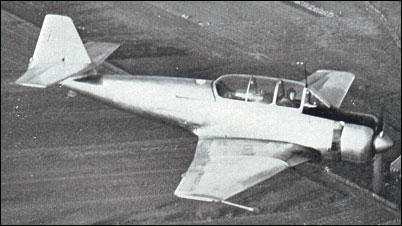

On 23 July 1955 the first prototype was flown of a two-seat basic trainer designated P.Z.L. TS-8 and later named Bies (fiend). A cantilever low-wing monoplane with retractable tricycle landing gear, powered by a Narkiewicz WN-3 radial engine and accommodating two in tandem beneath a jettisonable transparent canopy, initial deliveries to the Polish air force began in 1958. The type established several class speed records, and that set on 20 May 1957, of 320.362km/h over a 2000km closed circuit, remained unbeaten until August 1982. This fully aerobatic trainer remained in service for some six years, initial deliveries of the TS-11 Iskra which replaced it in service in the Polish air force beginning in 1964.

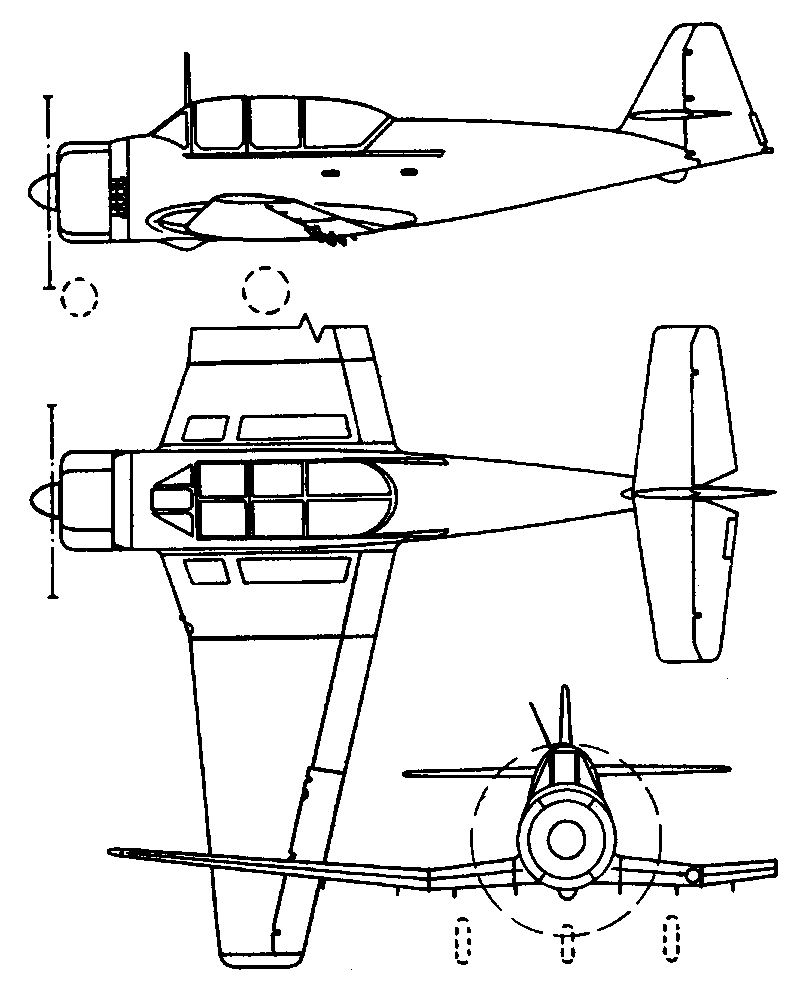

3-View
PZL TS-8 BiesA three-view drawing (804 x 992)

Specification
 ENGINE1 x Narkiewicz WN-3 piston engine, 246kW
 WEIGHTS
  Take-off weight1600 kg3527 lb
  Empty weight1070 kg2359 lb
 DIMENSIONS
  Wingspan10.5 m34 ft 5 in
  Length8.5 m28 ft 11 in
  Height3.3 m11 ft 10 in
  Wing area19.1 m2205.59 sq ft
 PERFORMANCE
  Max. speed312 km/h194 mph
  Ceiling6000 m19700 ft
  Range800 km497 miles

Comments
thomasdampf, e-mail, 06.09.2011 21:02

Hallo liebe polnischen Flugzeugfans
Wir hoffen das Ihr diese wundersch�ne Maschine wieder zum fliegen bringt,nachdem diese im Erzgebirge notlanden mu�te.
Viel Erfolg bei der Reperatur der Maschine w�nscht Thomas Dampf

reply

Kalrin, 17.05.2008 16:30

bies - name of demon from slavic mythology

reply
