Arado Ar 66

1933

Back to the Virtual Aircraft Museum
  SPORT, SCHOOL, TRAINERVirtual Aircraft Museum / Germany / Arado

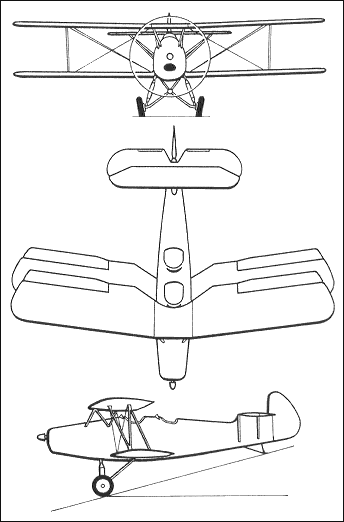

Arado Ar 66

Two-seat biplane trainer powered by a 179kW Argus As 10 engine.

Arado Ar 66

Specification
 CREW2
 ENGINE1 x As 10C, 175kW
 WEIGHTS
  Take-off weight1330 kg2932 lb
  Empty weight425 kg937 lb
 DIMENSIONS
  Wingspan10.0 m33 ft 10 in
  Length8.3 m27 ft 3 in
  Height2.9 m10 ft 6 in
  Wing area29.6 m2318.61 sq ft
 PERFORMANCE
  Max. speed210 km/h130 mph
  Cruise speed175 km/h109 mph
  Ceiling5200 m17050 ft
  Range w/max.fuel720 km447 miles

Comments
wlkriessmann, e-mail, 26.09.2010 00:53

The Ara 65 and 66 were our standard trainig airplane at the A /B school Straubing ,June /Ju;y 1939.A little clumsy

reply

lxbfYeaa, e-mail, 14.03.2024 wlkriessmann

20

reply

mike1204, e-mail, 25.04.2010 16:04

History and notes:
Walter Rethel's last complete de-sign for Arado prior to his transfer to the Messerschmitt organisation was the Ar 66, a two-seat single-bat biplane trainer of mixed construction. The tailplane was mounted on a raised rear fuselage fairing, ahead of the vertical tail surface, which comprised a wholly movable rudder, there being no fin. The prototype, flown in 1932, was designated Ar 66A and was powered by a 240-hp (179-kW) Argus As 10C inline engine. On Rethel's departure, Dipl. Ing. Walter Blume assumed responsibility for development of the aircraft, which entered series production as the Ar 66C, initial de-liveries being made to the Luftwaffe training schools after the outbreak of World War 2, and as late as 1943 it was pressed into service, together with the Gotha Go 145 trainer, to equip the night ground-attack Störkungkampfstaffeln (intruder squadrons) on the Eastern Front, armed with 2- and 4-kg (4- and 9-lb) anti-personnel bombs.
Variant:
Ar 66B: the second prototype, designated Ar 66H, was fitted with two wooden floats, and the rudder was extended beyond the bottom of the sternpost, faired into the rear fuselage by the addition of a ventral fin. Ten production Ar 66B floatplanes were subsequently built.

reply
