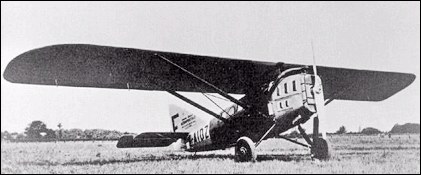

| The Late 25 was basically a Late 17 with increased wing span powered by a Renault or Jupiter 9Ab engine in the 450-500hp range. A few were fitted with Handley Page automatic slots. More than 50 were built, operated by Aeropostale and by subsidiary Brazilian and Argentinian companies.
CREW | 1 |
PASSENGERS | 4-5 |
ENGINE | 1 x 450hp Renault 12Ja |
WEIGHTS |
Take-off weight | 3283 kg | 7238 lb |
Empty weight | 1704 kg | 3757 lb |
DIMENSIONS |
Wingspan | 17.40 m | 57 ft 1 in |
Length | 9.44 m | 31 ft 12 in |
Height | 3.60 m | 12 ft 10 in |
Wing area | 48.60 m2 | 523.13 sq ft |
PERFORMANCE |
Max. speed | 193 km/h | 120 mph |
Cruise speed | 163 km/h | 101 mph |
Ceiling | 4200 m | 13800 ft |
Range | 850 km | 528 miles |
