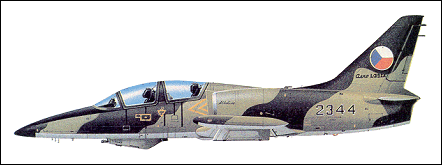

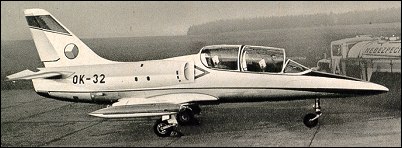

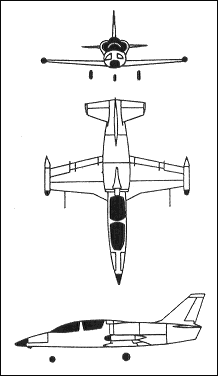

| The L-39 Albatros, first flown in 1968, is tandem-seat aircraft for basic and advanced pilot training, suitable also for tactical attack missions. L-39 versions:
- L-39C - training version with 2 hardpoints under the wing;
- L-39V - single-seater for target towing;
- L-39ZO - improved version with 4 hardpoints;
- L-39ZA - training/attack version with 4 underwing hardpoints and a removable gun pod under the fuselage. In latest configuration the L-39 is equipped with modern avionics, including HUD.
| CREW | 2 |
| ENGINE | 1 x AI-25T2, 14.7kN |
| WEIGHTS |
| Take-off weight | 2600 kg | 5732 lb |
| DIMENSIONS |
| Wingspan | 9.5 m | 31 ft 2 in |
| Length | 12.3 m | 40 ft 4 in |
| Height | 4.7 m | 15 ft 5 in |
| Wing area | 18.8 m2 | 202.36 sq ft |
| PERFORMANCE |
| Max. speed | 635 km/h | 395 mph |
| Ceiling | 13000 m | 42650 ft |
| Range w/max.fuel | 1260 km | 783 miles |
| ARMAMENT | 1 x 23mm cannon, 1100kg of weapons |
