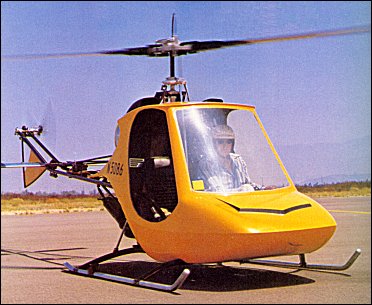

Back Rotorway "Scorpion Too"
1970

Scrpion Too

In 1972, the "Scorpion II" was introduced with an OMC 125 horsepower, 2 cycle engine which provided the added power to fly two lightweight people in cool, low density altitude environments. But despite all the improvements, overhaul times on the major components were still not up to the desired levels.

In 1974, the company embarked on a major redesign of the helicopter once more with the end goal of reducing the amount of maintenance time required per every hour of flight. The first, and most important, item to be addressed was the elimination of the inefficient 2 cycle engine. The company realized that there would never be a way to sufficiently dampen the excessive vibration and low torque associated with this type of engine. The vibration was found to cause rapid wear in various parts and had a tendency to cause cracks in airframe and drive systems.

Unable to find an engine manufacturer to make their 4-cycle engine suitable for the helicopter, RotorWay set forth on an aspect of the company that is unique to this day - producing their own engine. Called the RotorWay RW 133, this 4-cycle, 4-stroke engine now had the added power and torque the company was looking for. The RW 133 had a cruise speed of 128km/h with a range of 190km and a useful load of 190kg.

Later versions of the company's engines, the RW 145 and RW 152, represented continuous improvements made by RotorWay. These predecessors of the RI 162F engine helped make today's product possible. Nearly everything on the engine (and most of the kit) was produced in-house. From the cast rockers to the crankshaft and rod forgings, the RotorWay brand stood for excellence.

With a two-place helicopter available, RotorWay was able to begin instructing customers on how to fly their aircraft. Done at Scorpion Sky Center in Tempe, Arizona, this new program would remain an invaluable customer service tool from that point on.

www.rotorway.com

In 1958, B.J.Schramm set up a company to market a single-seat amateur-built helicopter known as the Schramm "Javelin". This machine had a tubular steel structure with a formed aluminium body shell and was powered by a 75kW Mercury powerboat engine. It first flew in August 1965. Schramm subsequently redesigned the "Javelin" as the "Scorpion", and he formed Rotorway Aircraft Inc. to market kits for this revised version, and claimed that 250 were flying by 1970. The "Scorpion Too" followed, and this had an expanded fuselage structure with a two-seat fibreglass cabin enclosure and a 105kW Evinrude marine engine.

R.Simpson "Airlife's Helicopter and Rotorcraft", 1998

Comments1-20 21-40 41-60 61-80
David Beadle, e-mail, 02.05.2021reply

April 2021
Hi, does anyone have or know of a Scorpion 2 for sale, project, basket case. I'm in UK so will have to do a complete strip and rebuild to stand any chance of flight !!. Please no starship prices, if you can't do it yourself be realistic. Cheers

gary preston sr, e-mail, 31.05.2021 David Beadle

hello david i have a scorpion 11 with extended frame for longer rotor blades and have new composite waitman blades rx7 13b engine with computer system to control all systems but nothing is assembled do youhave whatsap on your phone? if you do we can a call too many things to put ina email im getting a little older look forward to hearing from you GARY PRESTON 4636 kola rd new smyrna beach florida 32168 tel 3865611845 chow

reply

Gordon, e-mail, 29.11.2020reply

I have a 35mm(?) film of this helicopter. I only unspooled it far enough to get the name in the title. It looks like it's professionally made from the company and could maybe be an instructional or sales video. I can investigate further if there's some interest in the film.

Tom Sarlija, e-mail, 17.11.2020reply

Looking for scorpion ll frame build plans or blueprints to build this helicopter from scratch.

Tommy Garcia, e-mail, 21.11.2020 Tom Sarlija

Tom I just listed a fuselage and forward frame (already built) on my site. This can be had for $175! Email me back at topfueltommy69@gmail.com and hurry it won't last long.

reply

Terry L Hardesty, e-mail, 21.09.2020reply

Looking to buy a Scorpion II

Devin Wyatt, e-mail, 11.09.2020reply

I am really interested in getting my hands on a scorpion 2 / 133 body. If anyone knows where I can get one let me know. Much appreciated.

Jason, e-mail, 31.12.2020 Devin Wyatt

Check Redding California Craigslist.

reply

Luiz Henrique Bertolotto, e-mail, 11.12.2016reply

Anybody saw Scorpion for sale. Just advertise about money.

Charles Smith, e-mail, 18.03.2015reply

Is it for sale and how much?

Tyler, e-mail, 24.07.2010reply

Im selling a scorpion 2 for 8,000 or best offer

Stephanie, e-mail, 13.09.2010reply

Hello. I have the frame for a Scorpion Too, blueprints and other equipment that I must move. This equipment is from an Aerospace company, licensed contractor with the government. Has been left in storage, and we must now vacate the unit. We are asking $10,000 OBO for the frame and blueprints. If interested, please respond to opministorage@gmail.com, and I will be happy to forward pictures of what we have and details concerning the motor, etc. Thank you.

Sam, e-mail, 22.12.2020 Stephanie

Hi Stephanie,
Could you send me pics of everything you have? Very interested in the whole package. Where are you /the project located?
Thanks,
Sam

reply

Forrest, e-mail, 21.06.2010reply

I have a 1975 scorpion II, looking for a starter and flywheel. Would possibly sell as well. If interested let me know here please or email me, thanks
Forrest

Michael, e-mail, 17.01.2011reply

I have a Scorpion 133 in just about perfect condition for sale. All the sub-groups have been finished and the final assembly & testing is all that is needed. ALL PARTS AND PIECES are included. On top of this, the helo comes with the top RW152 motor (150hp). This is an estate item I am selling. All the work was done by a seasoned builder - DONE RIGHT !! Again, this helo package is complete and looks in almost new condition. Has EVERY building manual and schematics included. You won't need a thing. Taking interested offers now. Have plenty of pictures for serious interested individuals. Looking to move fast. PLEASE - NO SCAMMERS. I am a pro at sniffing out scams from overseas and domestic. Don't attempt it. This is a serious deal here.

ole norge, e-mail, 08.02.2011reply

hello. i have a scorpion II with omc engine .i need one of the bolts where fastening the lower engine mount on the engine block it is 6 pc. total with loch wire between.i think it is 5 /16 unc treads. i am living near oslo in norway,

Robert, e-mail, 14.02.2011reply

Hey Michael, I'm interested in the scorpion you have for sale. Call me on cell phone 225-413-7015

Robert, e-mail, 19.02.2011reply

I have a Rotorway Scorpion that has been rolled over but most of the parts are still good. 152 engine with single delorto carb, elastomeric rotor system, Stainless steel exhaust from rotorway, gearboxes for the tail drive, electronic ignition from crane cams allison, airframe and seat panels with body. $8,000 Louisiana

Luiz Henrique, e-mail, 04.03.2011reply

Ryan Harris para mim
mostrar detalhes 10:59 (11 horas atrás)

It was sold a long time ago. Please tell me where you saw the ad and I'll erase it--thanks

Patricia James, e-mail, 03.05.2011reply

DO YOU WANT TO BUY OR SELL AN AIRCRAFT OR VEHICLE?? VISIT OUR WEBSITE AT HTTP: / /WWW.ROTANNERMAC.COM

SALES MANAGER
PATRICIA JAMES

refakeloanners, e-mail, 23.05.2011reply

Wow this forum needs to get cleaned out more often. The number of scammers posting fake loan offers is hiding the actual scorpion sale and buy posts.

W.Peede, e-mail, 14.06.2011reply

I have a scorpion 2 / 133 , It needs the rotor blade mounting brackets that secures the main rotors to the head , also the proper length main rotorblades...Does any one Know of an outlet these items ...

steve partee, e-mail, 10.08.2011reply

i have a 133 for sale not finished 99 percent completfor sale phone 2565460862 in ala for mor infono time to take out

Paul Staebler, e-mail, 06.11.2013reply

Hey guys I have a Scorpion 1 I might be willing to sell. Is there any interest out there? It runs but has not gone up. Let me know. Please text: 563-518-0333
