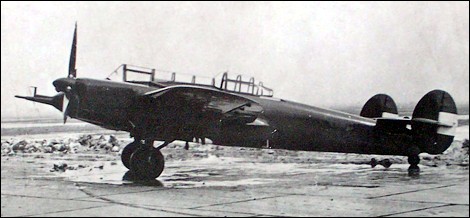

Rogozarski R-313

Twin-engined heavy fighter or reconnaissance/light bomber. One prototype R-313 (initially designated SIM-XV) ordered in 1938 and delivered in 1940. First flight early April 1940. Production of 25 aircraft planned, but halted by the April invasion. The prototype was captured by the Germans in April 1941 and later passed to the Croatian Air Force. Later destroyed by sabotage in 1942.

Rogozarski R-313

Specification
 MODELR-313
 CREW2
 ENGINE2 x 500hp Walter Sagitta I-SR
 WEIGHTS
  Take-off weight4270 kg9414 lb
  Empty weight2950 kg6504 lb
 DIMENSIONS
  Wingspan13.00 m43 ft 8 in
  Length11.00 m36 ft 1 in
  Height2.68 m9 ft 10 in
  Wing area26.40 m2284.17 sq ft
 PERFORMANCE
  Max. speed450 km/h280 mph
  Cruise speed376 km/h234 mph
  Ceiling8000 m26250 ft
  Rate of climb500 m/min1650 ft/min
  Range1000 km621 miles
 ARMAMENT1 x 20mm, 1 x 7.92mm, 4 x 100kg bombs
