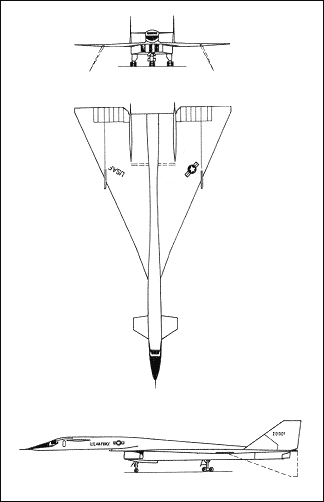

North American XB-70 Valkyrie

Developed to USAF General Operational Requirement 38 for an intercontinental bomber to replace the Boeing B-52, the Mach 3 North American XB-70A was the subject of an order for three prototypes, awarded on 4 October 1961, although the third was later cancelled. A delta-winged canard design, with wing tips which folded down at 65 to the horizontal to provide improved supersonic stability, and powered by six 13608kg thrust General Electric J93-GE-3 engines, the first prototype was flown by Alvin S. White and Colonel Joseph F. Cotton on 21 September 1964; it first achieved its design speed of Mach 3 on 14 October 1965. The improved second prototype flew on 17 July 1965, but was lost in a mid-air collision on 8 June 1966. The surviving aircraft carried out a number of test programmes, including work in connection with the US supersonic transport programme, but on 4 February 1969 it was flown to retirement at the US Air Force Museum, Wright Patterson AFB, Dayton, Ohio.

FACTS AND FIGURES

The Valkyrie's wingtips lowered to trap the shockwave under the fuselage and create 'compression lift', allowing operation at nearly 24,320m.

Company brochures claimed a B-70 could take off from the western US and intercept Chinese invaders approaching Taiwan before they were halfway across. The Valkyrie was not an interceptor, nor had it any anti-shipping capability.

The crew's seats became enclosed in individual escape capsules in an emergency. In the XB-70 crash, only one capsule functioned correctly.

Most of the XB-70 was made of a new type of stainless steel. The different grades of metal used caused electrolytic corrosion.

North American XB-70 Valkyrie

Specification
 CREW2
 ENGINE6 x General Electric J93-GE-3, 13608kg
 WEIGHTS
  Take-off weight249476 kg550003 lb
 DIMENSIONS
  Wingspan32.0 m105 ft 0 in
  Length59.75 m196 ft 0 in
  Height9.1 m30 ft 10 in
  Wing area565.0 m26081.60 sq ft
 PERFORMANCE
  Max. speed3218 km/h2000 mph
  Ceiling21336 m70000 ft
  Range w/max.fuel12000 km7457 miles

Comments1-20 21-40 41-60
