McDonnell Douglas MD-11

1990

Back to the Virtual Aircraft Museum
  PASSENGER, TRANSPORTVirtual Aircraft Museum / USA / McDonnell Douglas

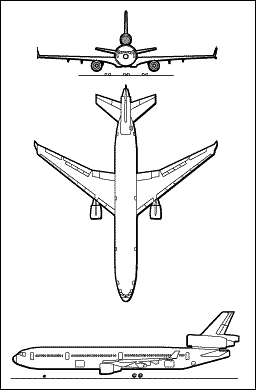

McDonnell Douglas MD-11

Follow-on to DC-10; revealed at Paris Air Show 1985; British Caledonian ordered nine 3 December 1986; official programme launch 30 December 1986; five aircraft in flight test programme (four with GE engines, one with P&W); first flight (N111MD) 10 January 1990 powered by CF6s; first flight of third prototype powered by P&W PW4460s, 26 April 1990; certified 8 November 1990; first delivery to Finnair 29 November 1990, entering service 20 December. 100th MD-11 delivered 30 June 1993. Certification with R-R Trent 650 discontinued. Fuselage production line moved from San Diego to Long Beach during early 1996. Production terminated at 200th aircraft (D-ALCN) which delivered to Lufthansa Cargo on 22 February 2001.

McDonnell Douglas MD-11

Specification
 MODELMD-11P
 CREW2
 PASSENGERS293-405
 ENGINE3 x General Electric CF6-80C2D1F turbofans, 273kN
 WEIGHTS
  Take-off weight273300 kg602527 lb
  Empty weight125870 kg277497 lb
 DIMENSIONS
  Wingspan51.6 m169 ft 3 in
  Length61.2 m201 ft 9 in
  Height17.6 m58 ft 9 in
  Wing area338.9 m23647.89 sq ft
 PERFORMANCE
  Max. speed962 km/h598 mph
  Cruise speed876 km/h544 mph
  Ceiling11000 m36100 ft
  Range w/max.fuel11000 km6835 miles
  Range w/max payload9270 km5760 miles

Comments
Tony, e-mail, 09.05.2012 21:14

Worked for G.D. Convair from 1990 to 1993 (RIFed) I've worked on every section of the MD-11,C&D, E, F&G, and the plugs, loved the job. Too bad San Diego ran them out. Just couldn't do business there. Too expensive.

reply

Mark Trankina, e-mail, 07.06.2011 07:52

I had the opportunity to be type rated and fly the MD-11 for World Airways. Great Company and Wonderful airplane. I have flown many airplanes and jets in my career, and the MD-11 was definitely one special airplane. I loved every hour at the controls.......What an Honor!

reply

James R., e-mail, 02.05.2011 23:08

Stood on the side of the runway when the first one took it's first flight. Worked for DAC at the time and was able to go on board just a day or two before the flight. Beautiful aircraft.

reply

Ray Bulger, e-mail, 28.03.2011 02:12

FinnAir Commericial Airline just recently replaced this plane with the Airbus but for a number of years used this plane for its commerical flights around the world.

A reliable plane that served its purpose and was the plane of choice in it's day.

reply

Capt. Chuck KEndrick, e-mail, 02.03.2011 03:50

Helped to certify the MD-11 and flew many "first flights" during production. Flew many thousand hours in the aircraft all over the world and it was one of the finest airliners I ever flew. The quietest First Class section of any aircraft! Sure enjoyed my tour with MDAC in Long Beach from 1990-1993.

reply

Richard Barrett, e-mail, 16.11.2010 22:33

Ned, I think you mean the PW-4460. The PW-2037 is the engine I flew on the B757. I was in the first class for the MD-11 and flew it for Delta until I retired in 1993. Both were great airplanes. Still flying jets!

reply

Almer, e-mail, 16.10.2010 04:59

Kok mirip DC10,apa dari rancangan ulang DC10 ?

reply

Ned Dolan, e-mail, 11.03.2010 00:57

The MD11 was also certified with Pratt & Whitney engines. It was the PW 2037.
Some models of the MD11 had higher weights. The passenger version had a TOGW of 618,000 and max landing of 430,000. The cargo was TOGW of 630,500 and landing of 471,500. I flew the American airlines planes with GE engines and the Korean Air with P&Ws.
The max operating altitude was 43,200.

reply

Nick, 04.09.2010 01:06

For any of you out there who are Flight Simulator enthusiasts, this plane was modeled to the T from PMDG, and is a blast to set up and fly. A bit complex initially, but well worth it when you finally "get it"

reply

Kenneth Fackrell, e-mail, 07.09.2010 22:50

Worked on the prototype. Saw the first one takeoff and made a many first flight for MD in the MD11. Fine airplane to bad we were sold out by John McDonnell. Boeing wanted to sell the 777. That is why this fine wellbuilt airplane was discontinued. Don"t let anyone tell you different.

reply

Endel Kelsey, e-mail, 05.06.2020 Kenneth Fackrell

As much as I want to agree with you, I both built and still maintain the 11, the 777 is a different beast and a better machine. It really pains me to admit that, I still blame Boeing for ending my retirement plans prematurely. I currently maintain both, and enjoy working on both.

reply
