Douglas AD (A-1) Skyraider

1945

Back to the Virtual Aircraft Museum
  BOMBERVirtual Aircraft Museum / USA / Douglas

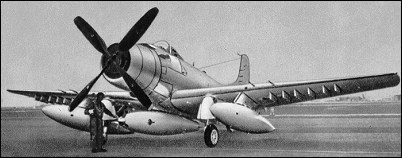

Douglas AD (A-1) Skyraider

Developed to satisfy a US Navy requirement of 1944 for a single-seat carrier-based dive bomber and torpedo carrier, the Douglas AD Skyraider (as it became designated) materialised too late for operational service in World War II. Ordered into production alongside the Martin AM Mauler, which had been developed to meet the same specification, it was to continue in production until 1957; although Martin's aircraft was taken off the production line after 151 had been built.

The Skyraider reflected the navy's wartime experience gained in the Pacific theatre, where it had been proved that the most important requirement for such aircraft was the ability to carry and deliver a heavy load of assorted weapons. Of low-wing monoplane configuration, a big Wright R-3350 radial engine was selected as the most suitable power plant to meet the load-carrying requirement, and this more or less dictated the fuselage proportions. The prototype XBT2D-1 flew for the first time on 18 March 1945. When production terminated 12 years later 3,180 aircraft had been built in many variants.

Although too late for World War II, Skyraiders were successfully deployed in both the Korean War and in Vietnam. Steady development led to the introduction of new power plant and equipment and the AD-5 was one of the most versatile military aircraft in US service. It differed significantly from earlier versions by having a wider and lengthened fuselage and providing side-by-side seating for two crew; specially designed quick-change kits were available so that the basic AD-5 could be utilised as a 12-seat transport, as well as for freight-carrying, ambulance and target-towing roles. When the US tri-service designations were rationalised in 1962, AD-1 to AD-7 versions became redesignated from A-1A to A-1J.

In addition to serving with the US Navy, Skyraiders have been operated also by the USAF and with the Royal Navy, French and Vietnamese Air Forces among others.

AD-1 Skyraider

Specification
 MODELAD-7 (AD-1J)
 ENGINE1 x Wright R-3350-26WA, 1985kW
 WEIGHTS
  Take-off weight11340 kg25001 lb
  Empty weight4785 kg10549 lb
 DIMENSIONS
  Wingspan15.47 m51 ft 9 in
  Length11.84 m39 ft 10 in
  Height4.78 m16 ft 8 in
  Wing area37.16 m2399.99 sq ft
 PERFORMANCE
  Max. speed515 km/h320 mph
  Ceiling7740 m25400 ft
  Range1448 km900 miles
 ARMAMENT4 x 20mm cannon, 3629kg of bombs

Douglas AD (A-1) Skyraider
