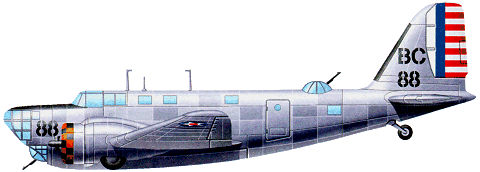

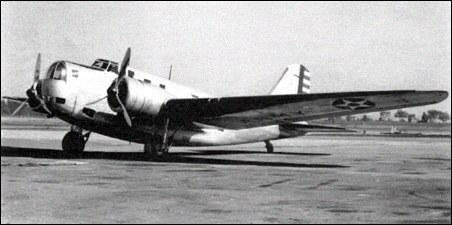

Douglas B-18 Bolo

Faced with a US Army Air Corps requirement of early 1934 for a bomber with virtually double the bomb load and range capability of the Martin B-10, which was then the USAAC's standard bomber, Douglas had little doubt that it could draw upon engineering experience and design technology of the DC-2 commercial transport which was then on the point of making its first flight.

Private-venture prototypes to meet the US Army's requirements were evaluated at Wright Field, Ohio, in August 1935, these including the Boeing Model 299, Douglas DB-1 and Martin 146. The first was built as the B-17 Flying Fortress, the last was produced as an export variant of the Martin B-10/B-12 series, and the Douglas DB-1 (Douglas Bomber 1) was ordered in January 1936 into immediate production under the designation B-18. Derived from the commercial DC-2, the DB-1 prototype retained a basically similar wing, tail unit and powerplant. There were, however, two differences in the wing: while retaining the same basic planform as the DC-2, that of the DB-1 had a 1.37m increase in span and was mounted in a mid-wing instead of low-wing position on an entirely new fuselage, one that was deeper than that of the commercial transport to provide adequate accommodation for a crew of six, and to include nose and dorsal turrets, a bomb-aimer's position, and an internal bomb bay. There was, in addition, a third gunner's position, with a ventral gun discharging via a tunnel in the underfuselage structure. Powerplant comprised two 694kW Wright R-1820-45 Cyclone 9 engines.

A total of 133 B-18s was covered by the first contract, this number including the single DB-1 which had served as a prototype. True production aircraft, which had the type name Bold, had a number of equipment changes, producing an increase in the normal loaded weight, and more-powerful Wright R-1820-45 radials. The last B-18 to come off the production line differed by having a power-operated nose turret, and carried the company identification DB-2, but this feature did not become standard on subsequent production aircraft.

B-18A

The next contracts, covering 217 B-18 A aircraft, were placed in June 1937 (177) and mid-1938 (40). This version differed by having the bomb-aimer's position extended forward and over the nose-gunner's station, and the installation of yet-more-powerful Wright R-1820-53 engines. Most of the USAAC's bomber squadrons were equipped with B-18s or B-18As in 1940, and the majority of the 33 B-18As which equipped the USAAC's 5th and 11th Bomb Groups, based on Hawaiian airfields, were destroyed when the Japanese launched their attack on Pearl Harbor.

When in 1942 B-18s were replaced in first-line service by B-17s, some 122 B-18As were equipped with search radar and magnetic anomaly detection (MAD) equipment for deployment in the Caribbean on anti-submarine patrols under the designation B-18B. The Royal Canadian Air Force also acquired 20 B-18As which, under the designation Digby Mk I, were employed on maritime patrol. The designation B-18C applied to two other aircraft reconfigured for ASW patrol. Another two aircraft were converted for use in a transport role under the designation C-58, but many others were used similarly without conversion or redesignation.

Douglas B-18 Bolo on YOUTUBE

Douglas B-18 Bolo

Specification
 MODELB-18A
 CREW6
 ENGINE2 x Wright R-1820-53 Cyclone 9, 746kW
 WEIGHTS
  Take-off weight12552 kg27673 lb
  Empty weight7403 kg16321 lb
 DIMENSIONS
  Wingspan27.28 m90 ft 6 in
  Length17.63 m58 ft 10 in
  Height4.62 m15 ft 2 in
  Wing area89.65 m2964.98 sq ft
 PERFORMANCE
  Max. speed346 km/h215 mph
  Cruise speed269 km/h167 mph
  Ceiling7285 m23900 ft
  Range1937 km1204 miles
 ARMAMENT3 x 7.62mm machine-guns, 2948kg of bombs

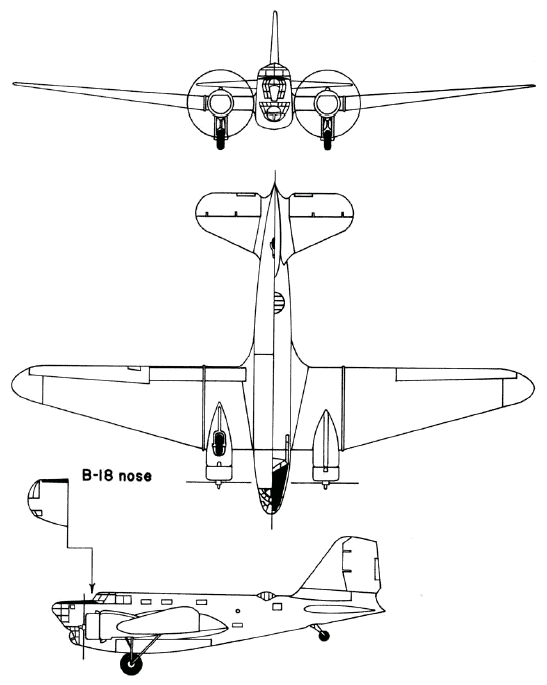

3-View
B-18AA three-view drawing of B-18A (547 x 685)
