Convair XFY-1 Pogo

1954

Back to the Virtual Aircraft Museum
  EXPERIMENTAL VTOL FIGHTERVirtual Aircraft Museum / USA / Convair

Convair XFY-1 Pogo

Contemporary with the Lockheed XFV-1, the Convair XFY-1 was designed for the same US Navy competition. This was intended to investigate the potential of a small single-seat tail-sitting VTOL fighter aircraft for operation from and to small platforms on a variety of ships. The fuselage served to accommodate the pilot's cockpit and turboprop power-plant, and mounted externally the monoplane wings of modified delta planform and large dorsal and ventral tail surfaces in a cruciform arrangement. On the ground the XFY-1 rested on small castor-ing wheels at the tips of the horizontal and vertical surfaces.

Extensive tethered tests from a special rig were followed by a first vertical take-off and landing on 1 August 1954. Testing continued with a series of similar vertical flights before the first complete transition from vertical to horizontal flight and vice versa was accomplished on 2 November 1954. Although some 40 flight hours were accumulated by two prototypes of this experimental fighter, its development was abandoned as a result of major flight control problems.

FACTS AND FIGURES

� The Convair XFY-1 Pogo was designed to take-off and land vertically. Only one pilot was brave enough ever to fly the dangerous machine.

� The spinner was so large because the production version was intended to carry an air-intercept radar, although no mechanism was devised to stop it rotating with the spinner.

� Although the XFY-1 was never armed, a producrion Pogo would have had four 20mm cannon or a battery of air-to-air rockets.

� To board the Pogo, the pilot had to climb a very tall ladder and lie on his back while the aircraft sat on its tail. Special moveable hangars were needed so that groundcrews could work on the engines.

� Castoring wheels were fitted to the ends of the wings and tail surfaces.

Convair XFY-1 Pogo

Specification
 ENGINE1 x 4362kW Allison YT40-A-6 turboprop
 WEIGHTS
  Take-off weight7371 kg16250 lb
  Empty weight5345 kg11784 lb
 DIMENSIONS
  Wingspan8.43 m28 ft 8 in
  Length10.66 m35 ft 12 in
  Wing area32.98 m2354.99 sq ft
 PERFORMANCE
  Max. speed982 km/h610 mph
  Ceiling13320 m43700 ft
 ARMAMENT4 x 20mm cannon (proposed) or 46 x 70mm rockets

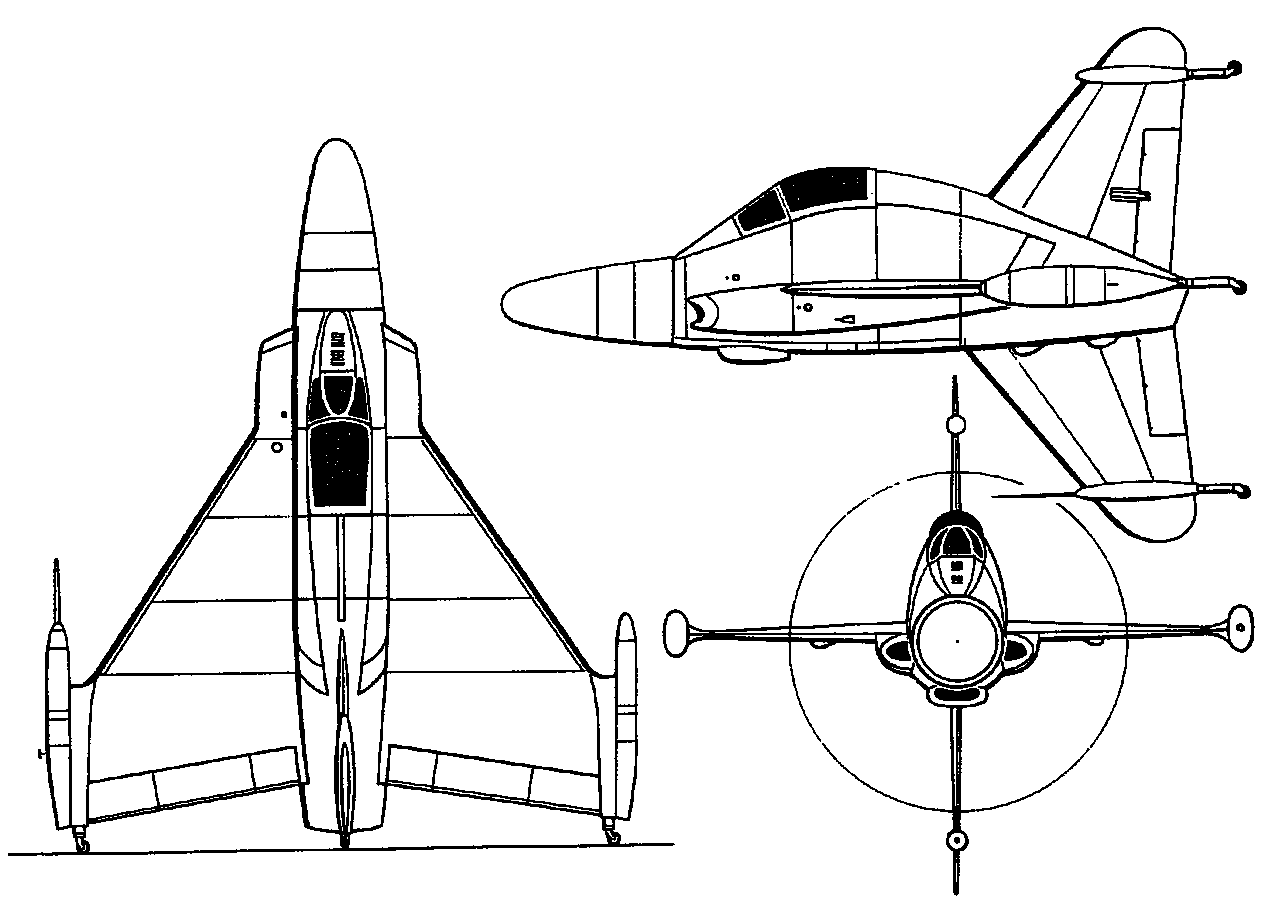

3-View
Convair XFY-1 PogoA three-view drawing (1280 x 912)

Comments
GrahamClayton, e-mail, 01.01.2023 09:30

The pilot would have to look back over his shoulder to land the plane, wouldn't he?

reply

Quinn, 03.11.2012 20:37

This is one of my all time favorite aircraft. I think it was unfortunate that it never served.

reply

Matthew Kitchen, e-mail, 26.08.2012 13:26

Unlike the Lockheed Salmon; the Pogo can only land and take off vertically. Yes; it can fly horizontally; but can't land and take off horizontally.

reply

Robert F. Dorr, e-mail, 17.07.2011 16:00

It was exciting to live in an era when these aircraft were new and the United States had an educated, literate population able to spend on uncertain projects and willing to experiment with original ideas. The XFY-1 and XFV-1 made the cover of Collier's magazine and were well known to every teenaged aviation enthusiast in the 1950s.

reply

malu, 18.06.2011 13:56

the two propellor hubs rotated around a central "stalk" that extended from the fuselage. A radar wouldn't have been a problem.

reply

Klaatu, e-mail, 16.05.2011 19:14

This was an extremely ill-conceived and impractical idea on the part of the Navy, probably thought up by someone who had never actually been on a ship at sea. For one thing the designated engine, the Allison T-40, was mechanically unreliable. Apart from that, however, the possibility of a regular military pilot being able to take off and land in a vertical attitude successfully from a small platform on the rolling and pitching deck of a ship at sea was extremely remote. As it was this prototype aircraft only managed to be taken off and landed from the land, and then only by an extremely experienced test-pilot.

reply

Pawlowski, e-mail, 08.09.2010 03:09

Robert Lee (Hoot) Gibson, retired NASA astronaut is currently building a scale rendition of the Convair XFY-1 POGO as a radio controlled model aircraft. Looks like it will use a contra-rotating prop too.

reply

John Knebel, e-mail, 17.08.2010 06:14

The statement that only one pilot flew the XFY-1 is incorrect. I was the alternate pilot to Skeets Coleman, & I hovered it in free flight off Lindberg Field without rig training--almost wrecking it in the process.

Randino is correct in stating that a fixed shaft came through the contra-rotating propellers--it was used in the rigs that were used @ Moffet & Brown Field for tethered training.

reply

Ray Preis, e-mail, 20.08.2010 16:27

The 18 ft. Diameter contra-rotating propellers were provided by Curtiss Wright. I had the priviledge of being the Curtiss engineering rep for a short time in early 1954 and worked with Skeets. Oh yes it was a dangerous machine and anyone who flew it had to be a courageous and talented pilot as were those that flew the Sea Dart where one lost his life in a terrible accident on the bay.

reply

Randino, e-mail, 13.04.2010 20:15

"The spinner was so large because the production version was intended to carry an air-intercept radar, although no mechanism was devised to stop it rotating with the spinner" is incorrect. The forward section of the nose was static (originally designed to have a parachute recovery housed in what would be the upper section for test); the two propellor hubs rotated around a central "stalk" that extended from the fuselage. A radar wouldn't have been a problem.

reply

CASTLE22R, e-mail, 13.06.2008 16:35

It's a shame it never served.
