| During the course of 1929, work began as a private venture
on two prototypes of a single-seat parasol fighter
monoplane, one of these prototypes (Model 202) being
intended for offer to the USAAC and the other (Model
205) having arrester gear for US Navy evaluation. The
Models 202 and 205 featured a semi-monocoque metal
fuselage and metal wings, with smooth, non-stressed
metal skinning. Provision was made for the standard
twin 7.62mm gun armament and the Model 205
could carry a single 227kg bomb or five 13kg bombs. The Model 202 had a Pratt & Whitney
SR-1340D Wasp rated at 450hp at 2438m and
the Model 205 had an SR-1340C rated at 480hp at sea

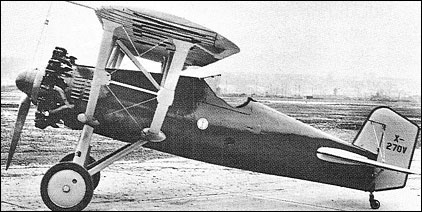

level. The Model 202 was flown in January 1930, and
was unofficially assigned the designation XP-15 when
evaluated by the USAAC. During evaluation it was fitted
with a ring cowling and revised vertical tail surfaces,
but was rejected by the USAAC and eventually

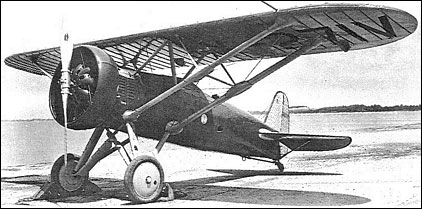

crashed on 7 February 1931. The similar Model 205 was
assigned the designation XF5B-1, and underwent
modifications identical to those applied to the Model
202. Flown in February 1930, the XF5B-1 was used for
experimental purposes for three years, no production
being undertaken.

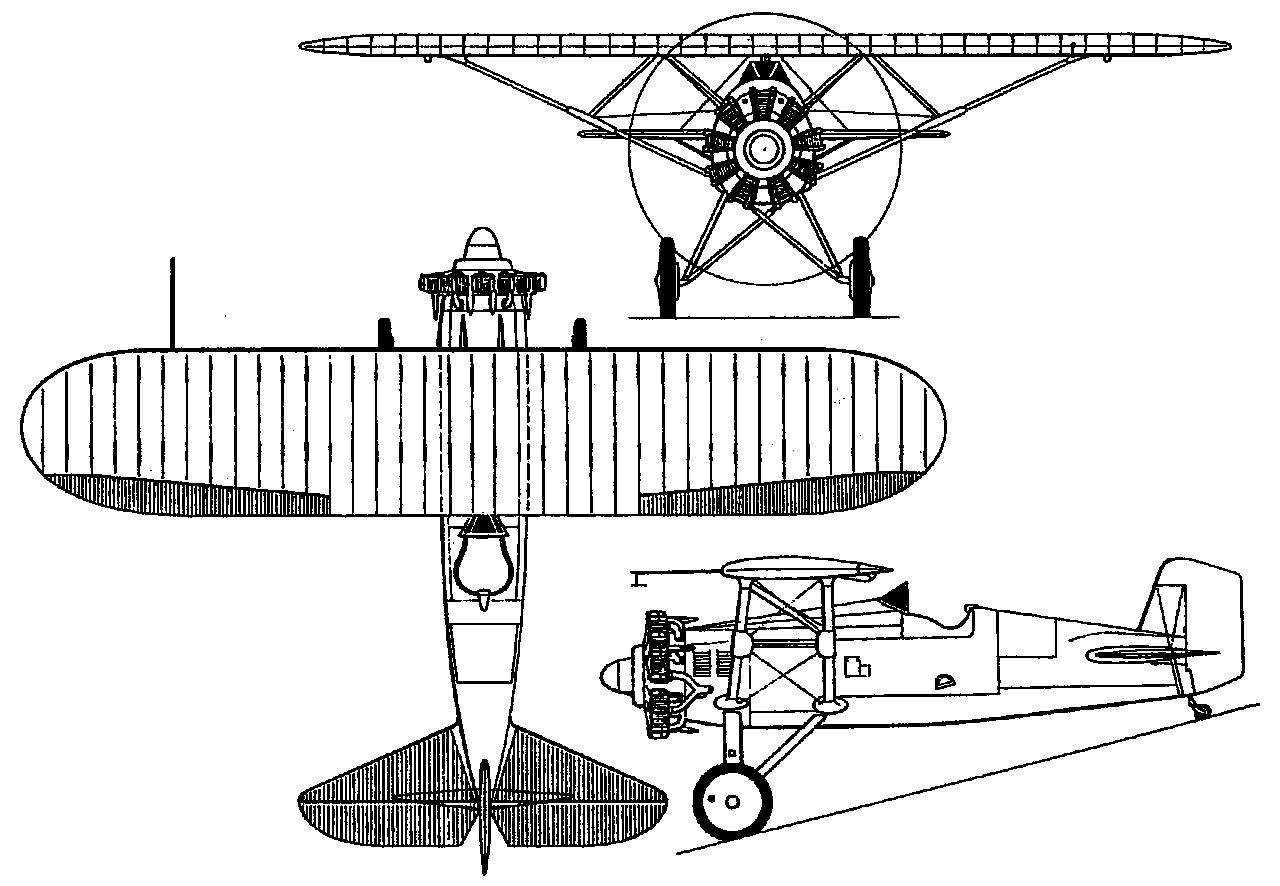

 | A three-view drawing (1280 x 886) |
| MODEL | Model 202 (XP-15) |
| WEIGHTS |
| Take-off weight | 1245 kg | 2745 lb |
| Empty weight | 931 kg | 2053 lb |
| DIMENSIONS |
| Wingspan | 9.29 m | 31 ft 6 in |
| Length | 6.40 m | 21 ft 0 in |
| Height | 2.84 m | 9 ft 4 in |
| Wing area | 14.61 m2 | 157.26 sq ft |
| PERFORMANCE |
| Max. speed | 298 km/h | 185 mph |
