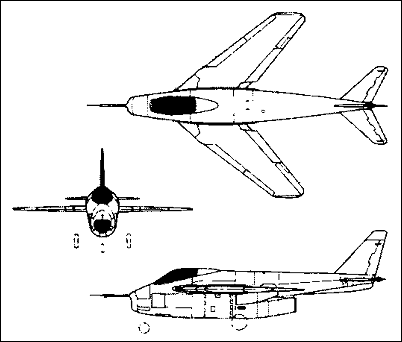

Bell X-5

First flown on 20 June 1951, the X-5 was built to investigate the aerodynamic effects of changing the degree of wing sweepback during flight. Its variable-geometry wings could be swept at angles varying from 20 to 60. Two X-5s were built.

Bell X-5

Specification
 MODELX-5
 ENGINE1 x Allison J35-A-17 tubojet, 2223kg
 WEIGHTS
  Take-off weight4536 kg10000 lb
 DIMENSIONS
  Wingspan5.66/9.39 m19 ft 7 in / 31 ft 10 in
  Length10.16 m33 ft 4 in
  Height3.66 m12 ft 0 in
 PERFORMANCE
  Max. speed1046 km/h650 mph
