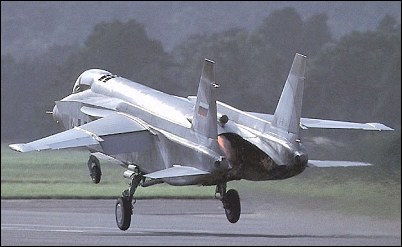

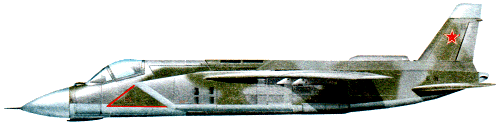

| The Yak-141, being the world's first supersonic STOVL (short take-off/vertical landing) aircraft, has three engines: one lift-cruise R-79 with a thrust of 15500kg and two small-sized RD-41 of 4100kg each. The powerplant allows the plane to lift off vertically with a weight of up to 15800kg. Alternatively, the Yak-141 can perform short take-offs (60-120m) with a weight of up to 19500kg. In the latter case the combat radius increases by 1.5-2 times and patrol time in the combat zone by two times. The pilot can use afterburner even when the nozzles are deflected. The Yak-141's integral flight-control system sets power and deflection of the nozzles so as to optimise making vertical/short take-offs and landings.

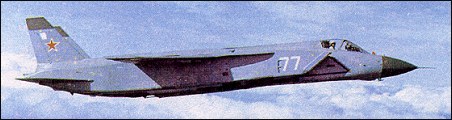

The Yak-141M was meant primarily for ground-basing. Introduction of new flight regimes, as well as new take-off/landing techniques, has entailed changes in the airframe, leading to a new design, the Yak-141M. The Yak-141 had its maiden flight some 25 years ahead of the timeframe set by foreign manufacturers for creation of such a plane. After the show in Farnborough, Yakovlev design bureau worked together with Lockheed on Joint Strike Fighter (JSF) programme. As a result, Lockheed's final JSF proposal resembles... the Yak-141M.
 | A three-view drawing (1658 x 1230) |
| CREW | 1 |
| ENGINE | 1 x R-79V-300, 152.0 kN , 2 x RD-41, 41.8 kN |
| WEIGHTS |
| Take-off weight | 19500 kg | 42990 lb |
| Empty weight | 11650 kg | 25684 lb |
| DIMENSIONS |
| Wingspan | 10.1 m | 33 ft 2 in |
| Length | 18.3 m | 60 ft 0 in |
| Height | 5.0 m | 16 ft 5 in |
| Wing area | 31.7 m2 | 341.22 sq ft |
| PERFORMANCE |
| Max. speed | 1850 km/h | 1150 mph |
| Ceiling | 15500 m | 50850 ft |
| Range w/max.fuel | 2100 km | 1305 miles |
| Range w/max payload | 1400 km | 870 miles |
| ARMAMENT | 1 x 30mm cannon, 1000kg (VTOL) or 2650kg (STOL) of weapons on six hardpoints |
