Yakovlev AIR-9

1935

Back to the Virtual Aircraft Museum
  TRAINERVirtual Aircraft Museum / USSR / Russia / Yakovlev

Yakovlev AIR-9

There is no text information for this aircraft at the moment.

3-View

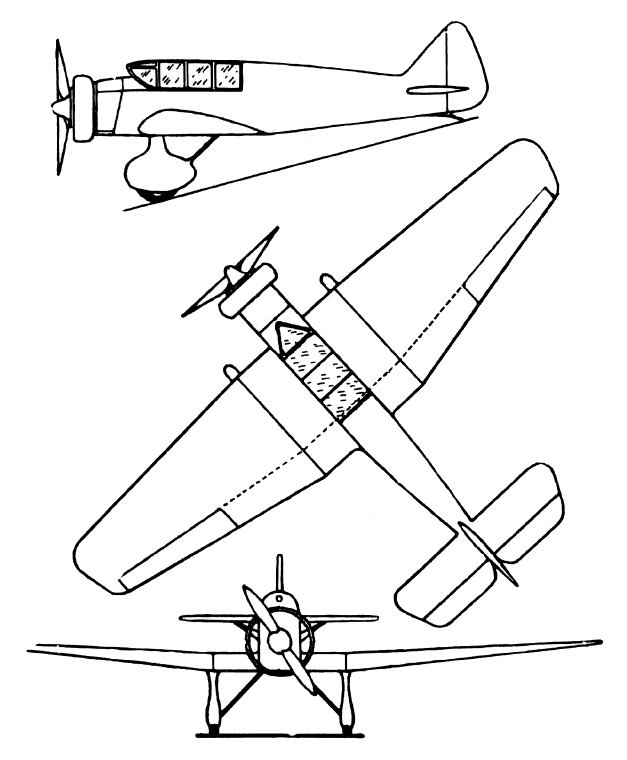

Yakovlev AIR-9A three-view drawing (627 x 760)

Specification
 MODELAIR-9bis
 WEIGHTS
  Take-off weight768 kg1693 lb
  Empty weight495 kg1091 lb
 DIMENSIONS
  Wingspan10.2 m33 ft 6 in
  Length6.97 m23 ft 10 in
  Wing area16.87 m2181.59 sq ft

Comments
Barry, 14.06.2016 17:50

Powered by a 100 h.p M11 engine the AIR-9 was the first Yakovlev design to be completed in the former bed factory that he inherited when his independent design house was established. The aircraft broke several records and later the AIR-9 bis appeared which some say was a completely new craft, but others insist was merely improvements made to the original.
