Yakovlev AIR-5

1931

Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / USSR / Russia / Yakovlev

Yakovlev AIR-5

There is no text information for this aircraft at the moment.

3-View

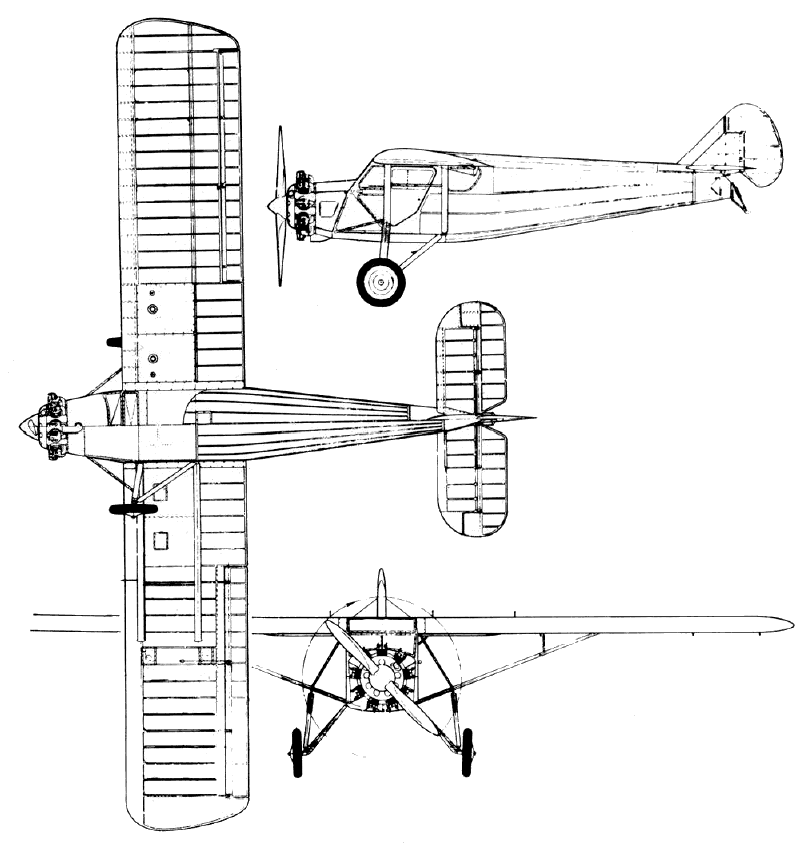

Yakovlev AIR-5A three-view drawing (810 x 846)

Specification
 WEIGHTS
  Take-off weight1390 kg3064 lb
  Empty weight812 kg1790 lb
 DIMENSIONS
  Wingspan12.8 m42 ft 0 in
  Length8.0 m26 ft 3 in
  Wing area23.0 m2247.57 sq ft
 PERFORMANCE
  Max. speed193 km/h120 mph
  Cruise speed152 km/h94 mph
  Ceiling4275 m14050 ft
  Range1000 km621 miles

Comments
Barry, 14.06.2016 17:35

A "one off" featuring a steel tube fabric covered fuselage and metal wings with a crew of 1 plus 3 passengers. Powered by a 200 h.p. Wright Whirlwind J4. No further engine supplies were available so no production was made, giving way to the smaller AIR - 6.

reply
