Tupolev Tu-22M

NATO revealed existence of a Soviet variable geometry bomber programme in 1969; development had begun 1962, to meet Soviet Air Force requirement; first of between five and nine Tu-22MO prototypes observed July 1970 on ground near Kazan plant; confirmed subsequently as twin-engined design by Tupolev OKB; first flight 30 August 1969; nine Tu-22M-1 preproduction models for development testing, weapons trials and evaluation. Tu-22M-1 first flew July 1971; first displayed in West at 1992 Farnborough Air Show. Production at Kazan ended 1992, probably totalling nine Tu-22MO prototypes, nine Tu-22M-1s, 211 Tu-22M-2s and 268 Tu-22M-3s, or 497 in all.

Tupolev Tu-22M

Specification
 CREW4
 ENGINE2 x afterburning turbo-jet NK-25, 245.1kN
 WEIGHTS
  Take-off weight124000 kg273375 lb
 DIMENSIONS
  Wingspan23.3/34.3 m76 ft 5 in / 113 ft 6 in
  Length42.5 m139 ft 5 in
  Height11.1 m36 ft 5 in
  Wing area165.0 m21776.04 sq ft
 PERFORMANCE
  Max. speed2300 km/h1429 mph
  Ceiling14000 m45950 ft
  Range5100 km3169 miles
 ARMAMENT1-2 x 23mm cannons, 24000kg of bombs or missiles

3-View

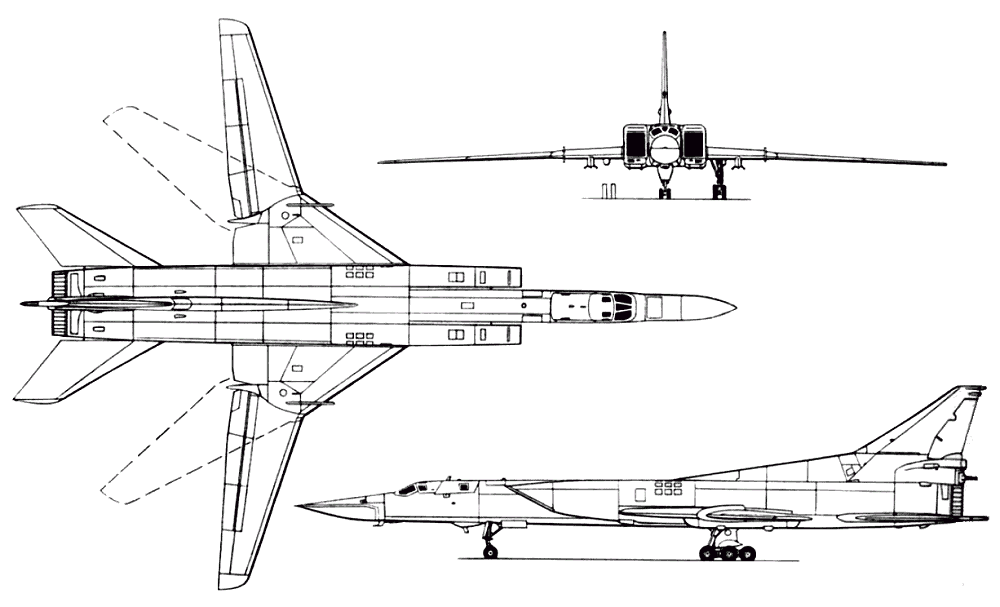

Tupolev Tu-22MA three-view drawing (1000 x 607)
