Mikoyan/Gurevich I-210

1941

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / USSR / Russia / Mikoyan/Gurevich

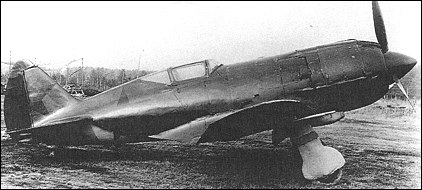

Mikoyan/Gurevich I-210

Late in 1941, as series production of the MiG-3 phased out following the decision to discontinue manufacture of its AM-35A engine (priority having been assigned to the AM-38 for the IL-2 shturmovik), an attempt was made to adapt the basic airframe to take the 1700hp Shvetsov M-82A 14-cylinder air-cooled radial. Assigned the Izdeliye designation IKh by the OKB and the provisional official designation I-210, and also referred to unofficially as the MiG-3M-82, the first of five airframes adapted to take the new engine was flown in December 1941. The M-82A weighed only 20kg more than the AM-35A that it supplanted, but was 38cm wider, a new forward fuselage being necessary to cater for the cross section translation from the circular cowling to the oval centre fuselage. The armament consisted of three 12.7mm guns. Plans were prepared to initiate IKh production as the MiG-9, but flight test revealed a serious drag problem, severe tail vibration and poor control characteristics. Despite the disappointing results of factory testing, the first aircraft was fitted with yet two more 7.62mm guns and sent to the Kalinin Front. The TsAGI, meanwhile, conducted full-scale wind tunnel testing with one of the IKh aircraft, resulting in development of the I-211.

3-View
Mikoyan/Gurevich I-210A three-view drawing (1653 x 1193)

Specification
 WEIGHTS
  Take-off weight3382 kg7456 lb
  Empty weight2720 kg5997 lb
 DIMENSIONS
  Wingspan10.20 m33 ft 6 in
  Length8.08 m27 ft 6 in
  Wing area17.44 m2187.72 sq ft
 PERFORMANCE
  Max. speed565 km/h351 mph
  Range1070 km665 miles
