Beriev Be-2 (KOR-1)

The Be-2, originally designated KOR-1, was a shipboard reconnaissance seaplane. It was first flown on 4 September 1936 by P O Noman and entered service in 1938.

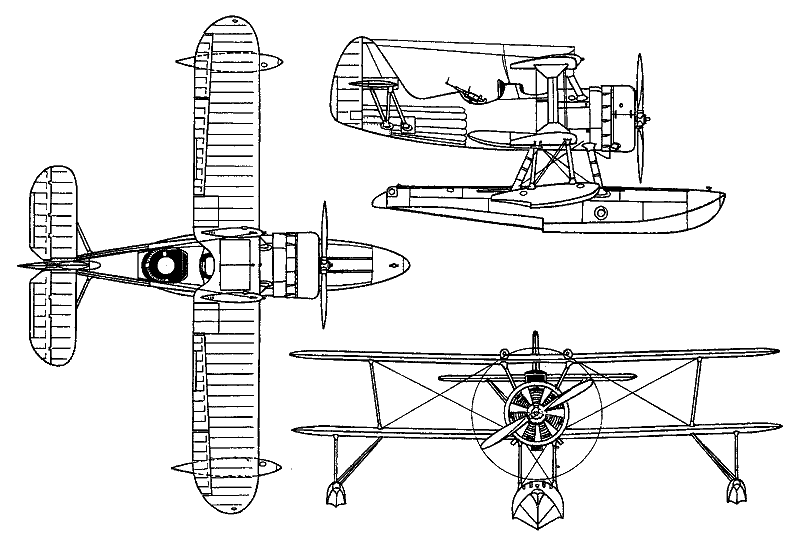

3-View
Beriev Be-2 (KOR-1)A three-view drawing (800 x 545)

Specification
 ENGINE1 x M-25A, 715hp
 WEIGHTS
  Take-off weight2425 kg5346 lb
  Empty weight1640 kg3616 lb
 DIMENSIONS
  Wingspan11.0 m36 ft 1 in
  Length7.1 m23 ft 4 in
  Height4.4 m14 ft 5 in
  Wing area31.8 m2342.29 sq ft
 PERFORMANCE
  Max. speed277 km/h172 mph
  Ceiling6600 m21650 ft
  Range860 km534 miles

Beriev Be-2 (KOR-1)

Comments
Barry, 23.02.2016 13:37

Only 12 built, entered service 1938 retired 1942.

reply

lxbfYeaa, e-mail, 14.03.2024 Barry

20

reply

D Mahoney, e-mail, 09.10.2010 19:06

This aircraft looks very much like a conversion of a Poliakarpov fighter (I 15?). Is this the case?
