PZL P.46 Sum

1938

Back to the Virtual Aircraft Museum
  LIGHT BOMBER, ATTACKVirtual Aircraft Museum / Poland / PZL

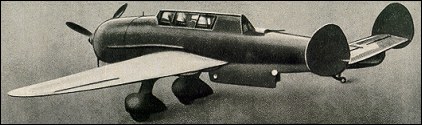

PZL P.46 Sum

The first prototype flew in October 1938. Two built.

3-View

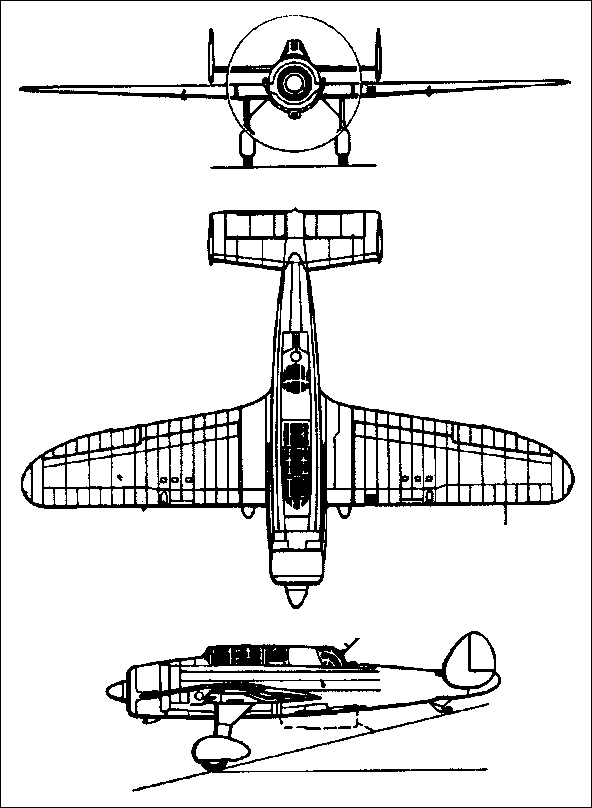

PZL P.46 SumA three-view drawing (592 x 808)

Specification
 MODELPZL-46 "Sum"
 CREW3
 ENGINE1 x Bristol "Pegasus XX", 675kW
 WEIGHTS
  Take-off weight3550 kg7826 lb
  Empty weight1995 kg4398 lb
 DIMENSIONS
  Wingspan14.6 m48 ft 11 in
  Length10.5 m34 ft 5 in
  Height3.3 m11 ft 10 in
  Wing area31.5 m2339.06 sq ft
 PERFORMANCE
  Max. speed425 km/h264 mph
  Cruise speed350 km/h217 mph
  Ceiling7700 m25250 ft
  Range w/max.fuel1300 km808 miles
 ARMAMENT6 x 7.7mm machine-guns, 600kg of bombs

Comments
dan ferguson, e-mail, 02.10.2010 20:33

trying to draw plans for a 6ft. model

reply

lxbfYeaa, e-mail, 14.03.2024 dan ferguson

20

reply

Mario Beauchesne, e-mail, 06.02.2010 19:21

Cet avion répondait au désir des militaires polonais qui désirait un remplacant valable du Karas P23 /43. Celui-ci souffrait de nombreuses insuffisances tels: problèmes avec le profils des ailes qui empêchait une plaine capacité en bombes. Un armement trop léger et un vitesse trop faible. On le verra loprs de la campagne de Pologne, ils furent presque tous abattus par la Luftwaffe.

reply

William Luther, e-mail, 21.08.2008 23:18

One of the two prototypes was used operationally during the Sept. 1939 airwar as a courrier between Poland and neighboring countries.

reply

tiptop, e-mail, 06.05.2008 15:50

The plane was a succesor of the P23 /43 Karaœ.

reply

jarecki, e-mail, 21.03.2008 14:40

"Sum" = eng. "Catfish"

reply

jarek, e-mail, 28.01.2007 17:34

this is version "A".Version "B" had;max,speed=460km /h,ceiling 8700m,range 1150km.Armament 6*7,92mm mg vz.36 /37 and up to 1000kg bombs.
