PAC Airtrainer CT/4

1972

Back to the Virtual Aircraft Museum
  PRIMARY TRAINER, SPORTPLANEVirtual Aircraft Museum / newzealand / PAC

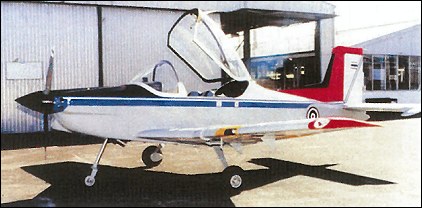

PAC CT/4E Airtrainer of Royal Thai Air Force

New Zealand redesign of Australian Victa Aircruiser; first flight 23 February 1972; deliveries began October 1973; 94 (plus two prototypes) built before production ended 1977 (75 CT/4A and 19 special military variants); production line reopened 1991 to build 12 civil CT/4Bs for Ansett Flying College and six for Thailand; last completed August 1992. First flight of CT/4C turboprop prototype (converted RAAF CT/4B) 21 January 1991.

CURRENT VERSIONS

T350: Turboprop version (previously known as C174C) with 313kW Rolls-Royce 250-B17D (throttle limited to 261kW) in lengthened nose. Certification was expected 1998 in anticipation of Southeast Asian order for 30, but this failed to materialise. Some interest still being shown in this version.

CT/4E: Developed version of CT/4B with more powerful engine; wing mounted slightly farther forward than on CT/4B; first flight (converted from RAAF CT/4A) 14 December 1991; NZ certification (FAR Pi 23 Amendment 36) 8 May 1992.

Specification
 MODELCT/4E
 WEIGHTS
  Take-off weight1179 kg2599 lb
  Loaded weight807 kg1779 lb
 DIMENSIONS
  Wingspan7.92 m26 ft 0 in
  Length7.16 m24 ft 6 in
  Height2.59 m9 ft 6 in
  Wing area11.98 m2128.95 sq ft
 PERFORMANCE
  Max. speed302 km/h188 mph
  Cruise speed282 km/h175 mph
  Ceiling5550 m18200 ft
  Range963 km598 miles
