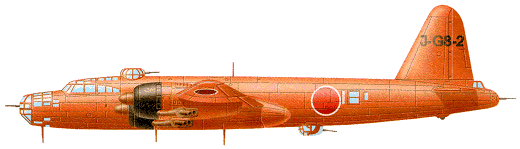

Nakajima G8N Renzan / RITA

Developed as the Experimental 18-Shi Heavy Bomber Renzan (Nakajima G8N1), this was a very advanced long-range bomber powered by four 1491kW Nakajima Homare 24 radials which gave it a maximum speed of 592km/h at 8000m. Maximum range was 7465km. Armament consisted of six 20mm cannon in twin power-operated dorsal, ventral and tail turrets, two 13mm machine-guns jn a power-operated nose turret, and single machine-guns of similar calibre in port and starboard beam positions. A maximum bombload of 4000kg could be carried over short ranges.

Four prototypes were built up to June 1945, but the proposed production programme was disrupted by Allied bomb- ing and was abandoned when the navy's role became defensive rather than offensive. These prototypes were allocated the Allied codename 'Rita'.

Nakajima G8N Renzan / RITA

Specification
 MODELG8N1
 ENGINE4 x Nakajima NK9K-L "Homare-24", 1500kW
 WEIGHTS
  Take-off weight26800-32150 kg59084 - 70879 lb
  Empty weight17400 kg38361 lb
 DIMENSIONS
  Wingspan32.54 m107 ft 9 in
  Length22.94 m75 ft 3 in
  Height7.2 m24 ft 7 in
  Wing area112 m21205.56 sq ft
 PERFORMANCE
  Max. speed590 km/h367 mph
  Cruise speed390 km/h242 mph
  Ceiling10200 m33450 ft
  Range4000 km2486 miles
  Range w/max.fuel7500 km4660 miles
 ARMAMENT6 x 20mm cannons, 4 x 12.7mm machine-guns, 1000-4000kg of bombs

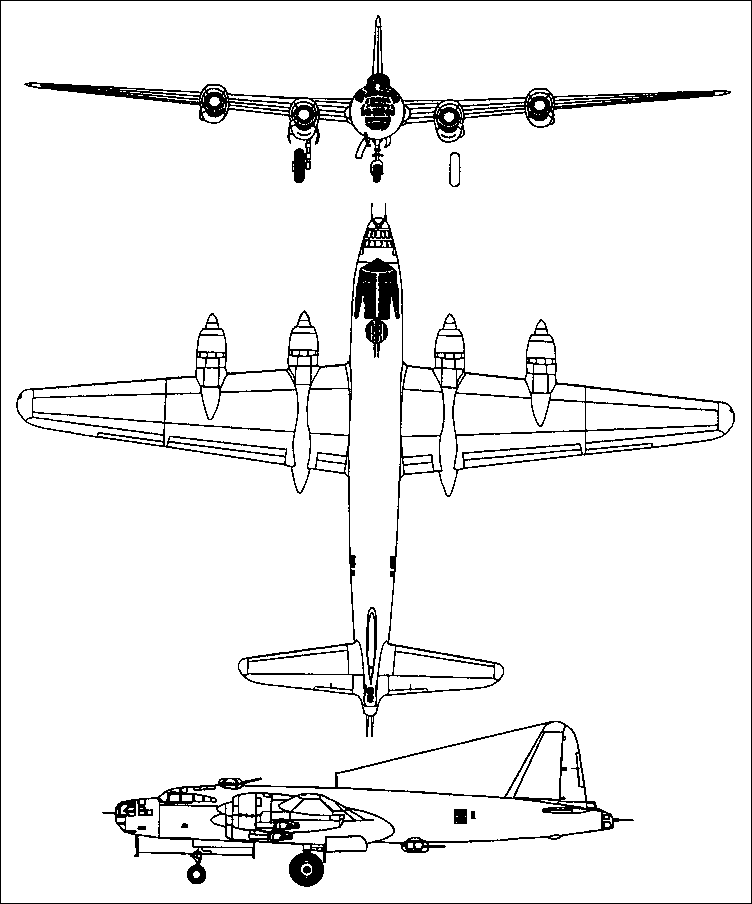

3-View
Nakajima G8N Renzan / RITAA three-view drawing (752 x 904)
