Kawasaki Ki-78

1942

Back to the Virtual Aircraft Museum
  RECORD AIRCRAFTVirtual Aircraft Museum / Japan / Kawasaki

Kawasaki Ki-78

The first prototype flew on December 26, 1942.

Kawasaki Ki-78

Specification
 MODELKi-78
 CREW1
 ENGINE1 x Deimler-Benz DB-601A, 880kW
 WEIGHTS
  Take-off weight2300 kg5071 lb
  Empty weight1930 kg4255 lb
 DIMENSIONS
  Wingspan8 m26 ft 3 in
  Length8.1 m27 ft 7 in
  Height3.07 m10 ft 1 in
  Wing area11 m2118.40 sq ft
 PERFORMANCE
  Max. speed700 km/h435 mph
  Ceiling8000 m26250 ft
  Range600 km373 miles

3-View

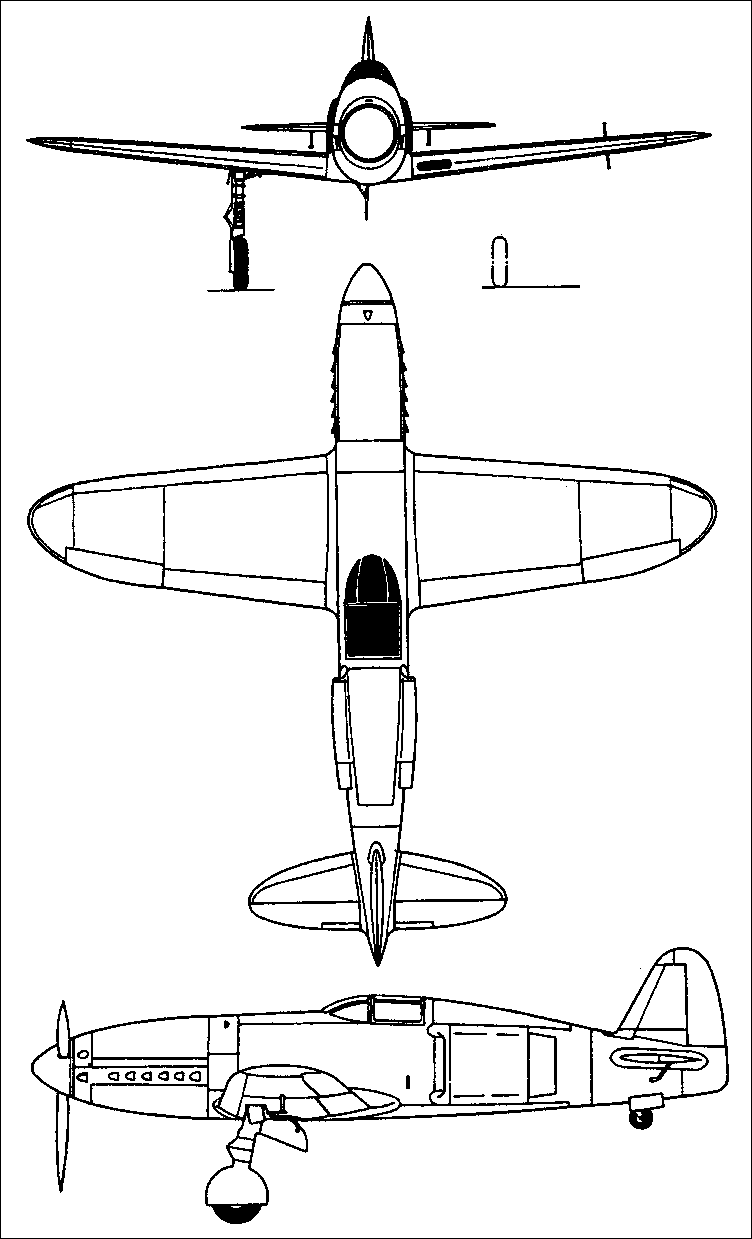

Kawasaki Ki-78A three-view drawing (752 x 1239)

Comments
Stephen Round, e-mail, 19.10.2013 03:55

Before Japan joined up with the axis Rolls Royce did supply Japan with some very very early R. R. Griffon (supersuper 2400+bhp oversize Merlin) type engines from the Supermarine S6 seaplane racer program - probably the level of technology R.R. had utilised involved too much research over to long a time span for them.

Maybe maybe may.. - it was a shame that R.R. got too involved with the old Merlin the Griffon was exceptional. It was only outperformed by the English 24 cylinder Napier Sabre at 3500+ which the English never offered to other countries. Both these engines were less than half the size and the weight of every other potential 2000bhp engines produced by anywone else anywhere!

If they had made a breeakthrough the Pacific War would have been a very close run thing

reply

fahuang, 20.06.2011 13:50

Love to build a replica of this little Hot Rod! Looks good for 500mph with a Merlin stuffed in its nose!

reply

Bill Kohler, e-mail, 18.11.2010 12:39

Mykola; Record means it was built to break the world air speed record.

I would like to see some good RC scale plans to build this one.

reply

Mykola, 18.10.2010 22:20

What does Record aircraft mean?

reply

Joerg Herold, e-mail, 08.09.2010 08:22

AZmodel has two kits of the Ki-78, the prototype and a nice one with "what if" markings. Simple kit, but looks good.

reply

lxbfYeaa, e-mail, 14.03.2024 Joerg Herold

20

reply

paul scott, e-mail, 10.09.2009 23:43

Nice aircraft, strange, futuristic look to it, like a bloated 109!

reply

Mick Dunne, e-mail, 29.12.2007 04:32

Love to build a replica of this little Hot Rod! Looks good for 500mph with a Merlin stuffed in its nose!

reply
