Kawasaki Ki-66

1942

Back to the Virtual Aircraft Museum
  DIVE-BOMBERVirtual Aircraft Museum / Japan / Kawasaki

Kawasaki Ki-66

The first prototype flew in October 1942. Did not entered production.

Kawasaki Ki-66

Specification
 MODELKi-66
 CREW2
 ENGINE2 x Nakajima Ha-115, 850kW
 WEIGHTS
  Take-off weight5750 kg12677 lb
  Empty weight4100 kg9039 lb
 DIMENSIONS
  Wingspan15.5 m51 ft 10 in
  Length11.2 m37 ft 9 in
  Height3.7 m12 ft 2 in
  Wing area34.0 m2365.97 sq ft
 PERFORMANCE
  Max. speed535 km/h332 mph
  Ceiling10000 m32800 ft
  Range2000 km1243 miles
 ARMAMENT2 x 12.7mm machine-guns, 2 x 7.7mm machine-guns, 300-500kg of bombs

3-View

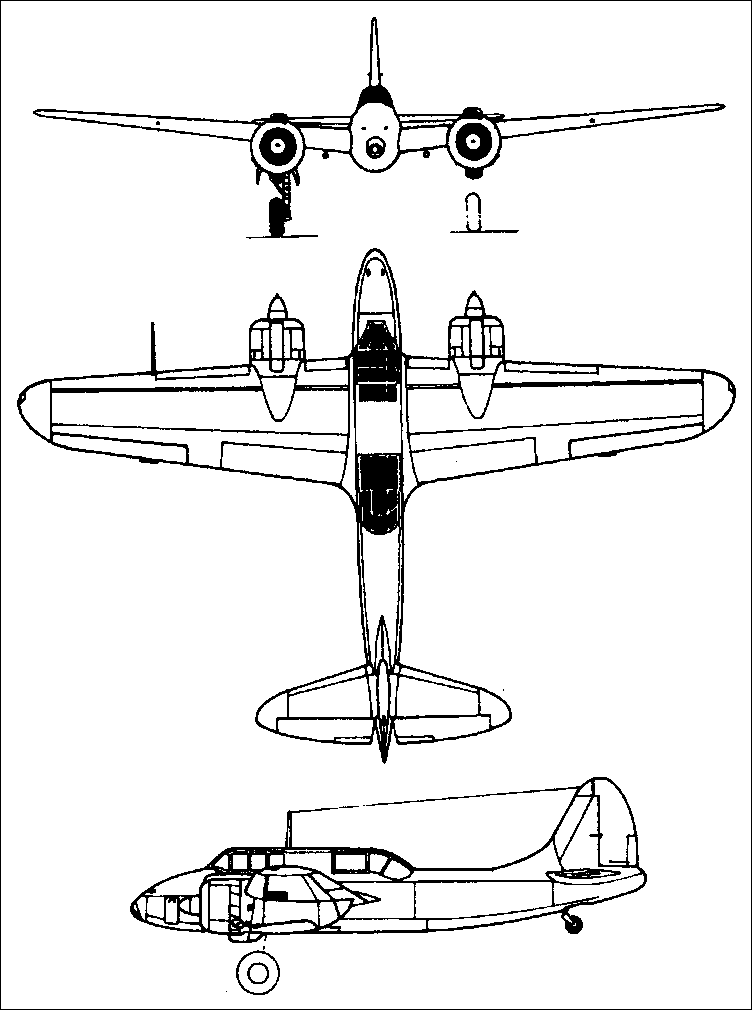

Kawasaki Ki-66A three-view drawing (752 x 1010)

Kawasaki Ki-66

Comments
lxbfYeaa, e-mail, 14.03.2024 06:04

20

reply

Barry, 08.09.2016 18:05

Only six prototypes were completed, and whilst their performance was more than satisfactory it was not a great improvement over the existing Ki 48 so no further development was made and the earlier model stayed in production.
