Aichi E11A Laura

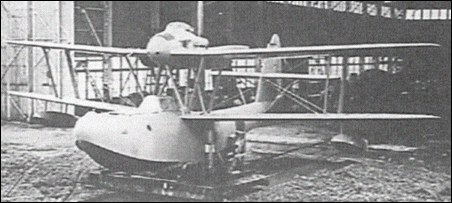

The Aichi E11A1 night reconnaissance flying boat, known to the Allies under the codename Laura, first flew in prototype form in June 1937. Competing against the Kawanishi E11K1, it proved to have superior performance, and was ordered into production as the Navy Type 98 Night Reconnaissance Seaplane.

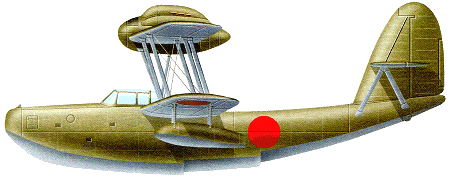

Of biplane configuration, the two-step hull carried a braced tail unit, with the tail-plane and elevator mounted almost halfway up the fin. Accommodation was provided for a crew of three, and there was an open bow position that could be used during on-water manoeuvres, such as making fast to a buoy, as well as mounting a defensive machine gun. To enhance stability on the water, balancer floats were mounted beneath each lower wing, close to the wingtip. Power-plant consisted of a Hiro Type 91 Model 22 inline engine, mounted at the centre-section of the upper wing, and driving a pusher propeller with spinner.

Production of E11A1s totalled only 17 aircraft, and these saw limited use in their intended role in the early stages of the Pacific war.

Aichi E11A Laura

Specification
 MODELE11A1
 CREW3
 ENGINE1 x Hiro type 91 mod. 22, 465kW
 WEIGHTS
  Take-off weight3300 kg7275 lb
 DIMENSIONS
  Wingspan14.49 m48 ft 6 in
  Length10.71 m35 ft 2 in
 PERFORMANCE
  Max. speed217 km/h135 mph
  Ceiling4400 m14450 ft
  Range1945 km1209 miles
 ARMAMENT1 x 7.7mm machine-gun

3-View
Aichi E11A LauraA three-view drawing (752 x 1029)

Comments
Ian Williams, e-mail, 16.11.2013 12:52

Did any plane survive the war. It would be a fine plane to have in a museum.

reply

Nigel Brearley, e-mail, 08.01.2011 18:35

Parshall, J. and Tully, A. (2005) note that the light cruiser Nagara carried a E11A1 while leading the screening destroyers for the main carrier force at Midway (p.108 also note 55 p. 545) noting that 'other Japanese sources' note that E11A1s were used on light cruiser Destroyer Division leaders at this early stage in the war.

reply

Terry Dransfield, e-mail, 20.05.2009 13:25

This aircraft looks to be a more advanced, but similar, design to the British Supermarine Walrus. Did the E11A1 have wheels and are drawings (with cross sections) available.

Thank you

reply

Terry Dransfield, e-mail, 20.05.2009 13:25

This aircraft looks to be a more advanced, but similar, design to the British Supermarine Walrus. Did the E11A1 have wheels and are drawings (with cross sections) available.

Thank you

reply
