Siebel Si 204

1941

Back to the Virtual Aircraft Museum
  TRANSPORT, TRAINERVirtual Aircraft Museum / Germany / Siebel

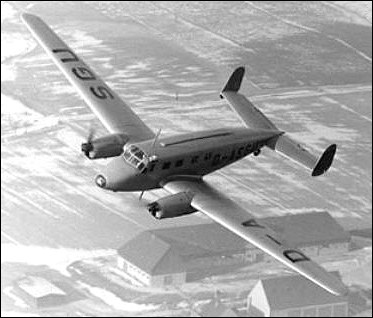

Siebel 204A

Used in substantial numbers by the Luftwaffe as a light communications aircraft and crew trainer, the Siebel Si 204 was essentially a scaled-up Fh 104. Two versions were produced, the Si 104A and Si 104D, the first of these flying in 1941. The Si 204A was intended as a feederliner for Lufthansa, but only a few had been produced before production switched to the militarized Si 204D. The majority of these were built at the Hanriot factory in France and the Aero factory in Czechoslovakia, and production continued in both countries for several years after World War II.

Siebel 204D

Specification
 MODELSiebel Si 204D
 CREW2-3
 ENGINE2 x 360hp Argus As 410 engines
 WEIGHTS
  Take-off weight5600 kg12346 lb
 DIMENSIONS
  Wingspan21.33 m70 ft 0 in
  Length11.95 m39 ft 2 in
  Height4.25 m14 ft 11 in
 PERFORMANCE
  Max. speed364 km/h226 mph
  Ceiling7500 m24600 ft
  Range1800 km1118 miles
 ARMAMENT1 x 7.5mm machine gun

3-View
Siebel 204DA three-view drawing of Siebel 204D (1000 x 772)
