Junkers Ju 90

1937

Back to the Virtual Aircraft Museum
  TRANSPORTVirtual Aircraft Museum / Germany / Junkers

Junkers Ju 90

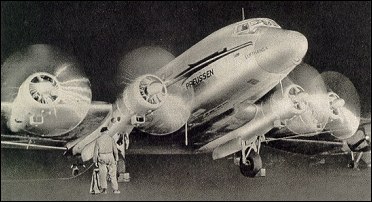

Forty-passenger commercial airliner powered by four 618kW BMW 132H engines. Eleven delivered to Luft-Hansa during 1938, most of which later passed to the Luftwaffe as troop transports.

3-View

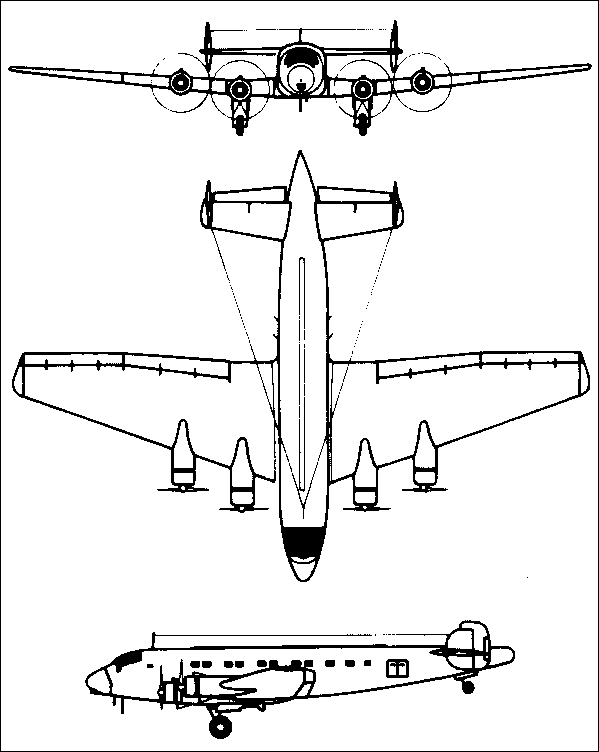

Junkers Ju 90A three-view drawing (599 x 752)

Comments
Mark, e-mail, 21.09.2012 14:30

Ju-90 A1,Z2

Crew: 4
Capacity: 38-40 passengers
Length: 26.30 m (86 ft 3.5 in)
Wingspan: 35.02 m (114 ft 10 in)
Height: 7.5 m (24 ft 7 in)
Wing area: 184 m� (1,980 ft�)
Empty weight: 19,225 kg (42,391 lb)
Loaded weight: 33,680 kg (74,264 lb)
Powerplant: 4 × BMW 132 H-1 radial engine, 610 kW (820 hp) each

Performance

Maximum speed: 350 km /h (217 mph)
Cruise speed: 320 km /h (200 mph)
Range: 1,247 km (774 mi)
Service ceiling: 5,750 m (18,860 ft)

reply

choqing, 20.06.2011 10:17

which were all seriously underpowered aircraft. Ju-90V5 to Ju-90V7 had straight wings similar to the Ju-290, but less span. Ju-90V6 and Ju-90V9 were converted to become Ju-390 prototypes.

reply

Maign� Francis, e-mail, 20.12.2009 21:07

Ju 90 Wurttemberg
����������Quadrimoteur transport de, �quipage et passagers 38 /40 fr cabine ferm�e, Monoplan voilure basse cantilever, bid�rive, em pennage cantilever classique horizontale, le train d'atterrissage escamotable, le train principal vers l'arri�re Dans les fuseaux moteurs int�rieurs, la roulette de queue semi r�tractable, trappe de chargement abaissable ventrale en vol pour les largages. Construction en ti�rement m�tallique. 4 moteurs tractifs de 14 cylindres en bmw Double �toile 801MA de 4 x 1600 cv, (6400 CV), mont�s au bord d'attaque de la voilure, h�lices tripales m�talliques � pas variable, E: 42 m, L: 28,64 m , H: 6,83 m, Sa: 205,30 m�. 1937, 4 types de proto.
����������Ju 90B-1: Versiion de pr�s�rie. 10 exemplaires
����������Ju 90S: version de transport militaire. 1 gondole ventrale avant avec 1 canon MG 151 /20 de 20 mm tirant vers l'avant et 1 MT 131 de MG 13 mm tirant vers l'arri�re, 1canon MG 151 /20 dorsale sous tourelle, 1 Identique Canon en tourelle caudale, 2 mt MG 131 de 13 mm lat�rales. 1940, 1 exemplaire.
����������Production totale: 15 exemplaires.

reply

Simon Gunson, e-mail, 06.11.2008 07:54

The wing design in the 3-view drawing pictured only applied to the first four Ju-90 aircraft, which were all seriously underpowered aircraft. Ju-90V5 to Ju-90V7 had straight wings similar to the Ju-290, but less span. Ju-90V6 and Ju-90V9 were converted to become Ju-390 prototypes.
