Breguet 462

1936

Back to the Virtual Aircraft Museum
  BOMBERVirtual Aircraft Museum / France / Breguet

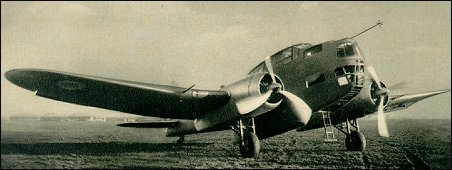

Breguet 462

The first prototype Br.460 flew for the first time in 1935. Then the project was cancelled in favour of Br.462 which first flown in October 1936. Only three Br.462 were built.

Breguet 462

Specification
 CREW4
 ENGINE2 x G+R 14NO, 700kW
 WEIGHTS
  Take-off weight8200 kg18078 lb
  Empty weight4350 kg9590 lb
 DIMENSIONS
  Wingspan20.5 m67 ft 3 in
  Length14.8 m49 ft 7 in
  Wing area57.0 m2613.54 sq ft
 PERFORMANCE
  Max. speed402 km/h250 mph
  Ceiling8300 m27250 ft
  Range w/max.fuel3100 km1926 miles
  Range w/max payload900 km559 miles
 ARMAMENT1 x 23mm machine-guns, machine-guns, 1500kg of bombs
