Arsenal VG 39

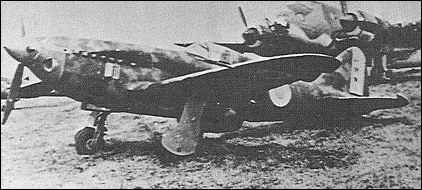

The final development in the VG 30 series of fighters to be flown, the VG 39 commenced its flight test programme on 3 May 1940, and the prototype differed from the VG 33 primarily in having a 1200hp Hispano-Suiza Type 89ter 12-cylinder liquid-cooled engine with an elongated propeller shaft, a revised wing structure which retained the profile and contours of the earlier wing, and a wing-mounted armament of six 7.5mm MAC 1934 M39 machine guns. During flight testing the prototype VG 39 attained a maximum speed of 625km/h at an altitude of 5750m. The planned production model, the VG 39bis, was to have embodied a fuselage similar to that of the VG 36 and to have supplemented the wing armament with a 20mm engine-mounted cannon, the definitive model having a 1600hp Hispano-Suiza 12Z engine.

3-View

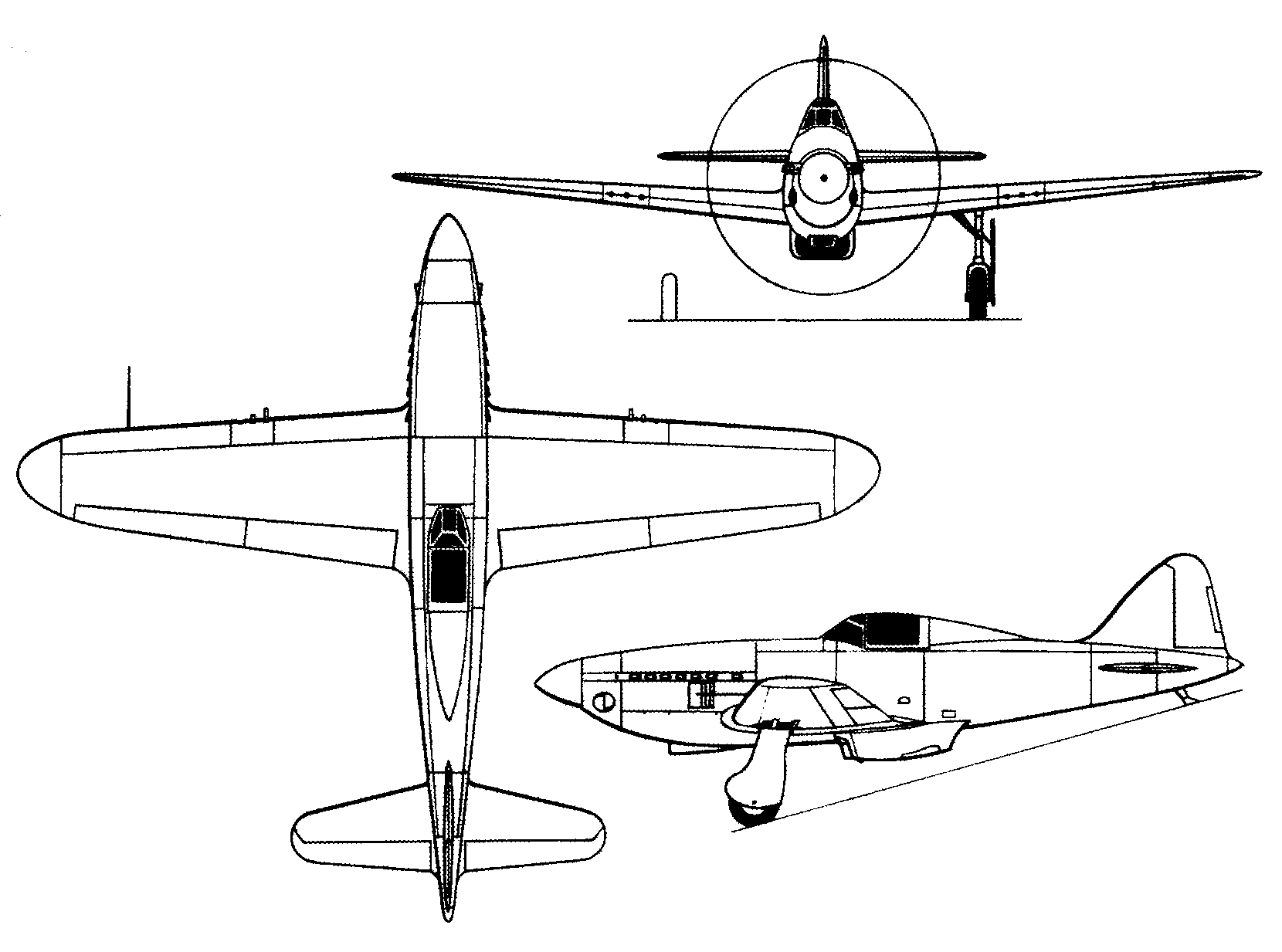

Arsenal VG 39A three-view drawing (1660 x 1233)

Specification
 MODELVG 39
 DIMENSIONS
  Wingspan10.80 m35 ft 5 in
  Length8.75 m29 ft 8 in
  Wing area14.00 m2150.69 sq ft
 PERFORMANCE
  Max. speed625 km/h388 mph

Comments
Laurelix, e-mail, 04.05.2020 18:46

This is the estimated VG performance based on VG.33 performance

VG.30 - HS.12Xcrs
407km /h at SL (100%) - 650hp
-
458km /h at 4500m (100%)

======================

VG.32 - V-1710-33
462km /h at SL (100%) - 860hp
492km /h at SL (WEP) - 1040hp
-
555km /h at 4500m (100%)

======================

VG.33 - HS.12Y-31
442km /h at SL (100%) - 760hp
455km /h at SL (WEP) - 830hp
-
558km /h at 5200m (100%)

=======================

VG.34 - HS.12Y-45
464km /h at SL (100%) - 850hp
479km /h at SL (WEP) - 935hp
-
574km /h at 5500m (100%)

========================

VG.35 - HS.12-51
465km /h at SL (100%) - 885hp
488km /h at SL (WEP) - 1025hp
-
620km /h at 6000m (100%)

========================

VG.39 - HS.12Z-89ter
482km /h at SL (100%) - 1088hp
492km /h at SL (WEP) - 1160hp
-
625km /h at 5800m (100%)

========================

VG.39bis - HS.12Z-17
491km /h at Sea Level (Military Power) - 1150hp
511km /h at Sea Level (WEP) - 1300hp
536km /h at Sea Level (Overboost) - 1500hp
-
674km /h at 7000m (Military Power)
717km /h at 7000m (WEP)
718km /h at 7000m (Overboost)

=========================

Engine Power Curves:
- HS.12Xcrs
650hp at Sea Level (Take off)
690hp at 3800m (100%)

- V-1710-33
860hp at Sea Level (100%)
1040hp at Sea Level (WEP)
970hp at 3700m (100%)

- HS.12Y-31
760hp at Sea Level (100%)
830hp at Sea Level (WEP)
860hp at 3150m (100%)

- HS.12Y-45
850hp at Sea Level (100%)
935hp at Sea Level (WEP)
920hp at 4200m (100%)

- HS.12Y-51
885hp at Sea Level (100%)
1025hp at Sea Level (WEP)
1000hp at 3250m (100%)

- HS.12Z-89ter (Early version)
1088hp at Sea Level (100%)
1160hp at Sea Level (WEP)
1200hp at ~5000m (100%)

- HS.12Z-17
1150hp at Sea Level (Military Power)
1300hp at Sea Level (War Emergency Power)
1500hp at Sea Level (Overboost)
-
1170hp at 6400m (Military Power)
1300hp at 7000m (WEP)
1500hp at 6000m (Overboost)
