Short Sturgeon

1946

Back to the Virtual Aircraft Museum
  TORPEDO-BOMBER, NAVAL TARGET TUGVirtual Aircraft Museum / United Kingdom / Short

Sturgeon TT Mk 3

Originally designed as a twin-engined naval reconnaissance bomber for operation from the Ark Royal and Hermes-class aircraft carriers. With the end of the war, the need for such an aircraft receded and so a new specification was drawn up to convert the Sturgeon into a high-performance carrier-based target tug, suitable for towing targets for ground-to-air firing practice, photographic marking of ground-to-air firing, target towing for air-to-air practice by night and day, 'throw-off' target practice and radar calibration. The FAA received a small number during the early 1950s.

External links

3-View

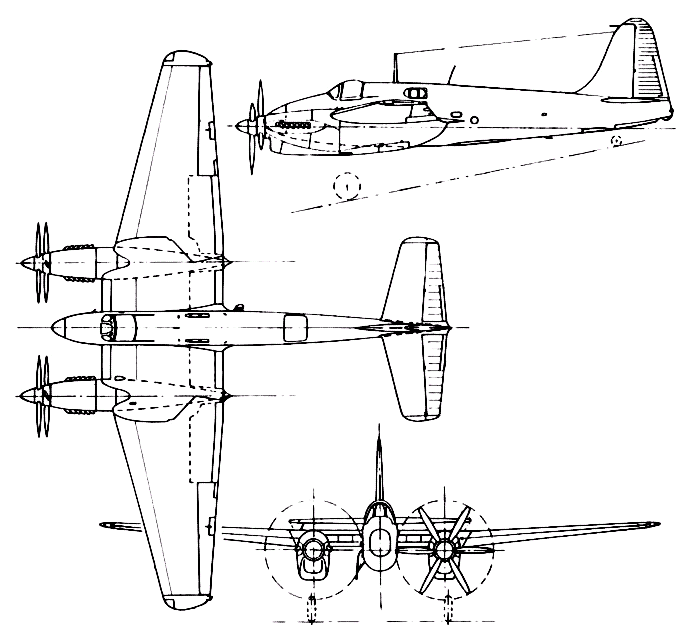

Short SturgeonA three-view drawing (688 x 642)

Specification
 MODELSturgeon TT3
 CREW2
 ENGINE2 x 2080hp Rolls-Royce Merlin 140 liquid-cooled engines
 WEIGHTS
  Take-off weight9840 kg21694 lb
  Empty weight7696 kg16967 lb
 DIMENSIONS
  Wingspan18.26 m60 ft 11 in
  Length13.70 m45 ft 11 in
  Wing area48.16 m2518.39 sq ft
 PERFORMANCE
  Max. speed590 km/h367 mph
  Ceiling10700 m35100 ft

Sturgeon TT2

Comments
GrahamClayton, e-mail, 01.01.2023 07:25

The SB3 with droopy nose is an exceptionally ugly aircraft.

reply

Mike Hoare, e-mail, 30.06.2012 03:09

The RAF used a Sturgeon equipped with Venom 3 night fighter radar for training navigators from Coltishall Squadrons in 1955.

reply
