Miles M.20

1940

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Miles

M.20 prototype

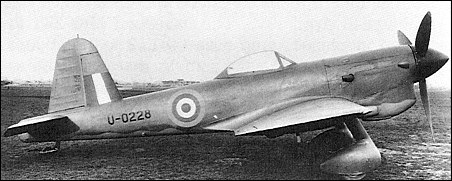

Conceived as an emergency fighter for production in the event that the RAF began to run short of more orthodox fighting aircraft, the M.20 was designed by Walter Capley to Specification F.19/40. Of wooden construction with all emphasis placed on rapidity of manufacture, the M.20 dispensed with a retractable undercarriage, thereby eliminating the need for hydraulics, utilised a one-piece wing, adopted a standard Rolls-Royce Merlin XX installation interchangeable with that of the Beaufighter II and employed standard Master cockpit equipment. The first prototype was designed, built and flown in the remarkably short time of 65 days. Powered by a 1,300hp Merlin XX engine and fitted with eight 7,7mm machine guns (but having provision for up to 12 guns), the M.20 was first flown on 15 September 1940. In the event, the Battle of Britain terminated before the RAF exhausted its available supplies of Hurricanes and Spitfires, and the M.20 was not, therefore, placed in production. However, Specification N.1/41 for a single-seat shipboard fighter covered reconstruction of the prototype with a jettisonable undercarriage, suiting it for use from catapults on the CAM-ships. It was tested in 1941-42 but no further development was undertaken.

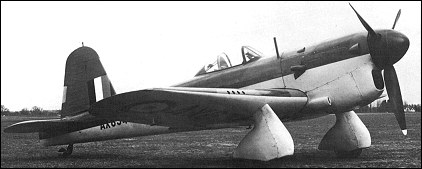

Small differences in the undercarriage design distinguished the rebuilt M.20

Specification
 WEIGHTS
  Take-off weight3519 kg7758 lb
  Empty weight2663 kg5871 lb
 DIMENSIONS
  Wingspan10.54 m35 ft 7 in
  Length9.17 m30 ft 1 in
  Height3.81 m13 ft 6 in
  Wing area21.74 m2234.01 sq ft
 PERFORMANCE
  Max. speed536 km/h333 mph
  Ceiling6280 m20600 ft
  Range885 km550 miles

3-View
The navalised M.20A three-view drawing of The navalised M.20 (1648 x 1168)
