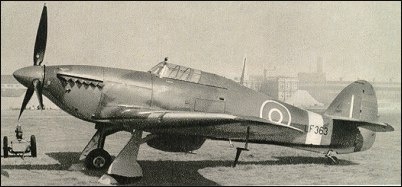

Hawker Hurricane

Few British aircraft have attained the special niche in the history of the RAF which is accorded to the Hawker Hurricane, sharing with the Supermarine Spitfire the brunt of air defence during the Battle of Britain in August-September 1940. One of the significant statistics of the Hurricane's contribution to this hard-fought battle was the fact that these aircraft destroyed more enemy aircraft than the combined total of all other defence systems, air or ground. Even that factor must be equated with the information that at the beginning of the battle (on 8 August 1940) approximately 65% more Hurricanes than Spitfires (2,309 to 1,400) had been delivered to the RAF's Fighter Command. Perhaps, in the final analysis, such figures can be regarded as more controversial than revealing. The fact remains that this combination of machines and courageous pilots was enough to deny the Luftwaffe access to the daylight skies over Britain without unacceptable loss.

The family tree of the Hurricane can be traced back to a 'Fury monoplane' proposal of 1933, then to be powered by the Rolls-Royce Goshawk evaporative-cooled power plant. Instead it was decided in early 1934 to adapt this design to incorporate the new PV.12 engine which Rolls-Royce had developed - and which was the direct forbear of the famous Merlin. From that time the airframe/engine combination bore so little relation to the Fury that it then became identified as the 'Interceptor Monoplane'.

This finalised design was submitted to the Air Ministry in 1934, and in the following year a prototype was ordered to Specification F.36/34. On 6 November 1935, powered by a 767kW Merlin 'C' engine, the Hurricane took to the air for the first time. Although of cantilever monoplane configuration, its construction was typical of the Fury from which it stemmed, and even its wings were fabric-covered in early Mk Is, with a metal leading edge and trailing-edge flaps. The tailwheel-type landing gear had hydraulically retractable main units of wide track. Armament of production Mk Is comprised four 7.7mm Browning machine-guns in each wing, making this the RAF's first eight-gun fighter.

Early tests of the prototype confirmed the predicted performance, and an initial order for 600 placed in June 1936 was followed by one for 1,000 additional aircraft in November 1938. The first production aircraft flew in October 1937 and Hurricane I began to enter service in December 1937, first with No 111 Squadron. In early February 1938 Britain's breakfast-time newspaper readers almost choked on their toast when headlines assured them that, during the night, No 111 Squadron's commanding officer (Sqdn Ldr J. GilIan) had flown his Hurricane from Edinburgh to Northolt at an average speed of 657km/h, assisted by a tail wind!

Subsequent Hurricane versions included the Mk IIA with Merlin XX and eight guns; Mk IIB with 12 guns; and Mk IIC with four 20mm cannon. Mk IID with two 40mm Vickers 'S' guns and two 7.7mm guns (plus additional armour for low attack) were used extensively in the Western Desert. The final production version was the Mk IV with a wing able to accept armament comprising two Browning machine-guns plus two 40mm guns, or eight rocket projectiles, or two 110kg or 225kg bombs, or long-range fuel tanks. The Hurricane V (only two built) was powered by a Merlin 27 or 32 engine, while Hurricane X, XII and XIIA were produced in Canada by the Canadian Car and Foundry Company with Packard 28 or 29 engines. A total of 12,780 Hurricanes were built in Britain, plus 1,451 in Canada.

Sea Hurricanes joined the Royal Navy in January 1941 and became the first carrier-based British single-seat monoplane fighter when taken to sea by HMS Furious in July 1941. Under the 'Catfighter' scheme, Sea Hurricane IA were equipped for catapult launch from the decks of CAM merchant ships (catapult-equipped merchantmen) to counter the threat posed by Germany's Focke-Wulf Fw 200 Condors, introduced in the spring in 1941. Only the Mk IA was specially built. The approximate figure of 800 Sea Hurricanes which entered service included 50 Mk IA and about 750 conversions of Mk II and Canadian-built aircraft.

In addition to the Hurricanes already mentioned, more than 4,000 were supplied to other air forces, including Belgium, Canada, Egypt, Eire, Finland, India, Persia (now Iran), Poland, Portugal, Romania, South Africa, the Soviet Union, Turkey, and Yugoslavia.

Hawker Hurricane on YOUTUBE

Hawker Hurricane

Specification
 CREW1
 ENGINE1 x Rolls-Royce "Merlin XX", 940kW
 WEIGHTS
  Take-off weight3540 kg7804 lb
  Empty weight2630 kg5798 lb
 DIMENSIONS
  Wingspan12.2 m40 ft 0 in
  Length9.8 m32 ft 2 in
  Height4.0 m13 ft 1 in
  Wing area24.0 m2258.33 sq ft
 PERFORMANCE
  Max. speed545 km/h339 mph
  Ceiling10850 m35600 ft
  Range w/max.fuel740 km460 miles
 ARMAMENT4 x 20mm cannons, 2 x 226kg bombs

3-View
Hawker HurricaneA three-view drawing (1658 x 1260)
