  TWO-SEAT TOURING AIRCRAFTVirtual Aircraft Museum / United Kingdom / De Havilland

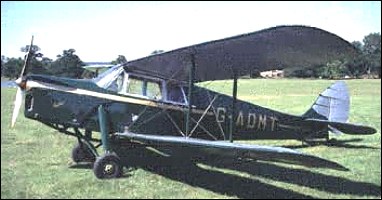

De Havilland D.H.87 Hornet Moth

For biplane afficionados with a taste for additional comfort, the company designed the de Havilland D.H.87 Hornet Moth, an enclosed side-by-side two-seater structurally similar to the D.H.86. It had tapered wings and a spruce/plywood box fuselage with external longerons, stringers and fabric covering. The prototype, first flown at Hatfield on 9 May 1934, was joined in a year-long test programme by two similar aircraft, preparing for production deliveries which began in August 1935 under the designation D.H.87A. Rather more than 60 aircraft were manufactured to this standard with new wings of increased taper and span (9.93m), but in 1936 yet another set of wings was introduced, first fitted retrospectively to the second production Hornet Moth. These new mainplanes, virtually without taper and with almost square tips, were made available to existing owners on a trade-in basis and were fitted also to almost 100 new aircraft designated D.H.87B. Following development of a floatplane version by de Havilland Aircraft of Canada Ltd, four examples were acquired by the Air Ministry in 1937 for evaluation as seaplane trainers at the Marine Aircraft Experimental Establishment at Felixstowe, Suffolk. Hornet Moth production, including the prototype, totalled 165 aircraft.

De Havilland D.H.87 Hornet Moth

Specification
 MODELD.H.87B (landplane)
 ENGINE1 x de Havilland Gipsy Major inline piston engine, 97kW
 WEIGHTS
  Take-off weight885 kg1951 lb
  Empty weight563 kg1241 lb
 DIMENSIONS
  Wingspan9.73 m32 ft 11 in
  Length7.61 m25 ft 12 in
  Height2.01 m7 ft 7 in
  Wing area20.44 m2220.01 sq ft
 PERFORMANCE
  Max. speed200 km/h124 mph
  Cruise speed169 km/h105 mph
  Ceiling4510 m14800 ft
  Range998 km620 miles

3-View
De Havilland D.H.87 Hornet MothA three-view drawing (800 x 804)
