Armstrong Whitworth A.W.35 Scimitar

1934

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Armstrong Whitworth

Armstrong Whitworth A.W.35 Scimitar

A refined development of the A.W.16, the A.W.35 Scimitar was powered by a Panther VII engine enclosed by a long-chord cowling and rated at 565hp at 3660m, but having a maximum output of 605hp at 4115m. Armament comprised two 7.7mm Vickers Type E machine guns and provision was made for four 9kg bombs to be carried beneath the lower mainplane. Two prototypes of the Scimitar were flown in 1933, and these were followed by four production examples for the Norwegian Army Air Force which were delivered at the beginning of 1936. These were powered by the Panther XIA with a maximum rating of 730hp.

3-View

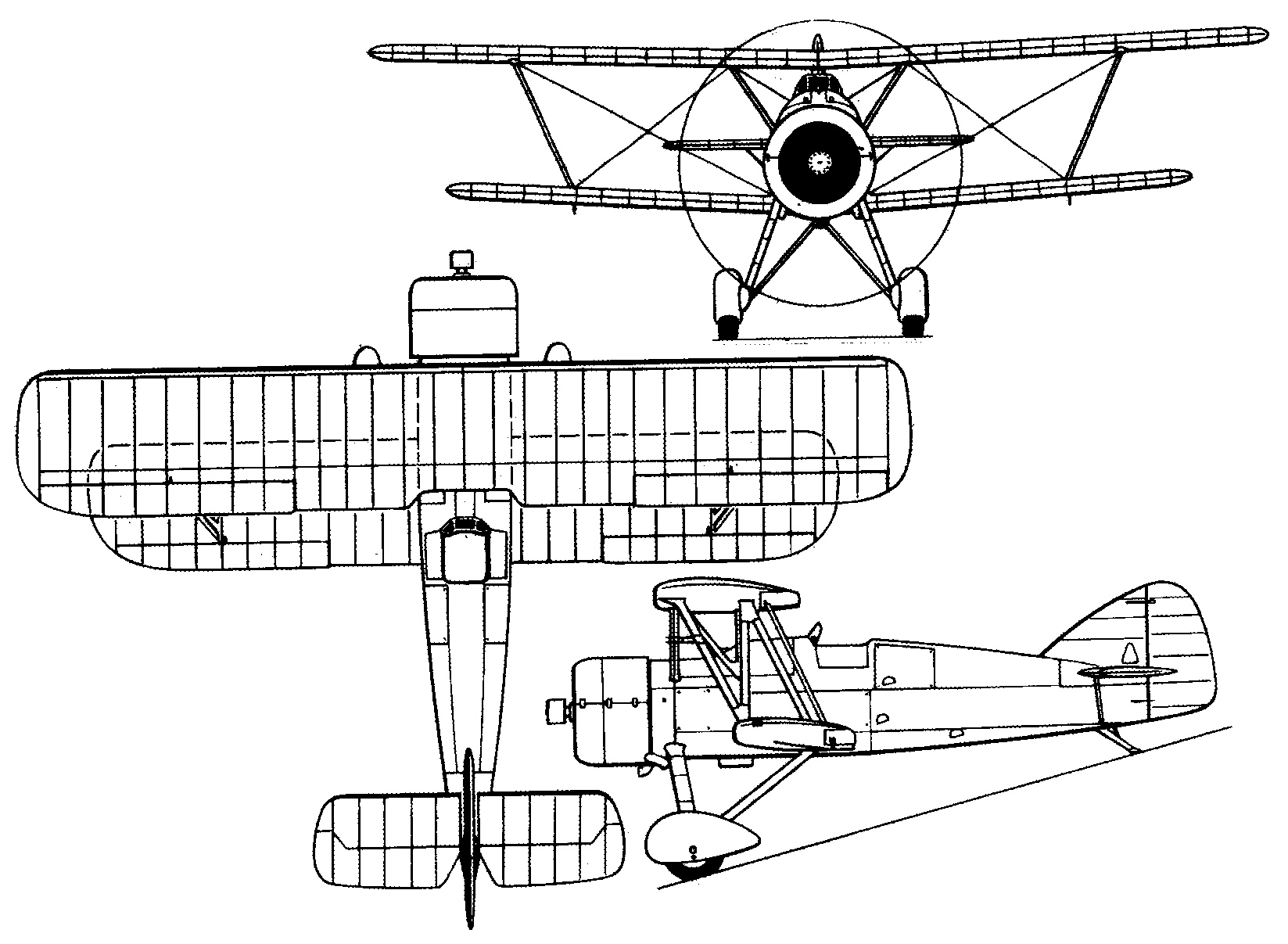

Armstrong Whitworth A.W.35 ScimitarA three-view drawing (1647 x 1207)

Specification
 WEIGHTS
  Take-off weight1860 kg4101 lb
  Empty weight1276 kg2813 lb
 DIMENSIONS
  Wingspan10.06 m33 ft 0 in
  Length7.62 m25 ft 0 in
  Height3.53 m12 ft 7 in
  Wing area24.28 m2261.35 sq ft
 PERFORMANCE
  Max. speed343 km/h213 mph
