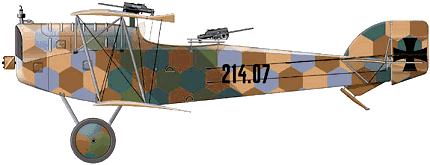

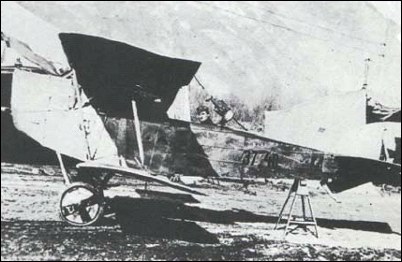

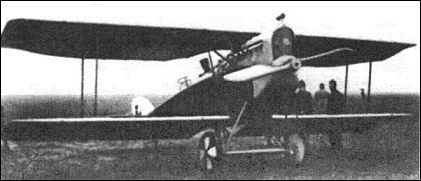

Aviatik (Berg) C.I

Following its experience with the series of reconnaissance aircraft, Aviatik produced the C.I in 1917. Like the B.III, it had a single long cockpit for the pilot (forward) and the observer but was more heavily armed with one forward-firing machine-gun and one rear-mounted gun. Powered by either a 138kW or 149W Austro-Daimler engine, the C.I had a very reasonable performance and was built in considerable numbers by five companies. Only its inherent structural weakness prevented it from receiving the acclamation that might otherwise have come its way. Nevertheless, it remained operational until the end of the war.

Aviatik (Berg) C.I

Specification
 CREW2
 ENGINE1 x 185hp Austro-Daimler
 WEIGHTS
  Take-off weight865 kg1907 lb
  Empty weight650 kg1433 lb
 DIMENSIONS
  Wingspan8.40 m28 ft 7 in
  Length7.60 m25 ft 11 in
 PERFORMANCE
  Max. speed185 km/h115 mph
  Cruise speed172 km/h107 mph
  Ceiling6400 m21000 ft
