Back Sikorsky S-2
1910

Sikorsky S-2

Built and tested in February to May 1910, Sikorsky's second helicopter was more sophisticated than the first, with a welded steel-tube airframe and three-blade rotors with metal spars. The emphasis was still entirely on achieving lift, with only collective pitch control of the rotors and no provision for horizontal flight controls. Again the helicopter's weight proved too much for the 25hp Anzani. Sikorsky decided to postpone further rotating-wing research, as his first fixed-wing design, the BIS-1, was ready for testing.

John W.R. Taylor "Images of America - Sikorsky", 1998

Sikorsky S-2

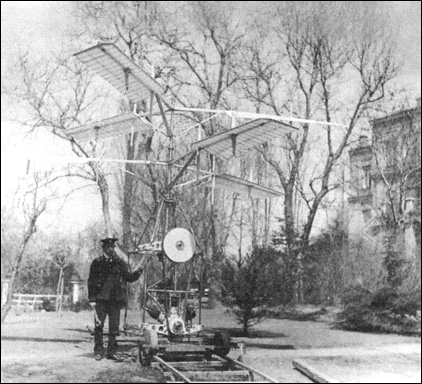

The S-2 was a helicopter with two three-bladed counter-rotating propellers. Underpowered aircraft was able to take off... but without a pilot.

Russian Aviation Museum

Technical data for S-2

Engine: 1 x Anzani rated at 18.4kW, main rotor diameter: 6.55m, take-off weight: 270kg, empty weight: 182kg

Comments
soccer, e-mail, 16.06.2011

Sikorsky decided to postpone further rotating-wing research.
