Hiller J-5

To counteract torque this two-bladed-rotor experimental helicopter used not a conventional tail rotor but a jet thrust system. The latter consisted of a fan blower placed just behind the engine with a 'stove pipe' tail forward. Air was thus forced under pressure through the hollow fuselage into a tail orifice where vanes directed the jet thrust laterally.

Main rotor torque was effectively overcome, but this torque compensation system's power requirements proved markedly excessive at speeds greater than 64km/h.

P.Lambermont "Helicopters and Autogyros of the World", 1958

*     *     *

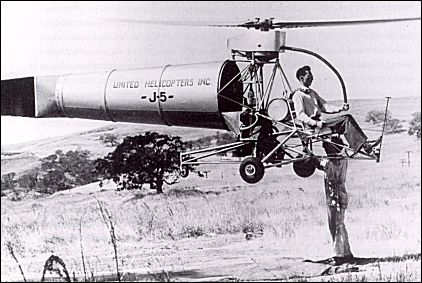

Single-seat experimental helicopter with open frame front mounting pilot and engine and metal cone tail with jet thrust duct. One built.

J.P.Spencer "Whirlybirds: A History of the U.S. Helicopter Pioneers", 1998

Comments
charlesmevans@hotmail.com, 26.09.2023reply

This helicopter was later reconfigured with a tail rotor and became the prototype for the UH12-360 Hiller.

j1248p@yahoo.com.br, 12.06.2020reply

in cartoon batman animated series 1992; the helicopter of gotham police use the NOTAR tail .

deaftom, e-mail, 13.04.2011reply

NOTAR...in 1946!
