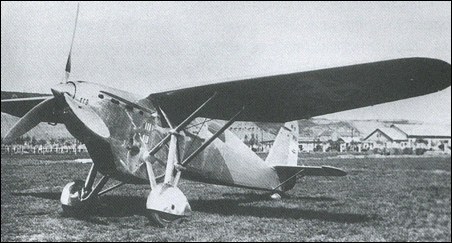

| After producing Potez 25 reconnaissance biplanes and Avia BH-33E fighters under licence, the Ikarus factory built the IK-L1, a prototype gull-wing monoplane fighter powered by a 860hp Hispano-Suiza 12Ycrs engine, and first flown on 22 April 1935. After this crashed a second IK-02 prototype was built, followed by a series of 12 Ikarus IK-2 fighters delivered in early 1939. Generally similar to the earlier prototypes, the IK-2s flew with 107 Eskadrila against the invading Germans in April 1941. Armament comprised one Hispano-Suiza 404 20mm cannon and two synchronised 7.7mm machine-guns.
Twelve Ikarus IK-2s were built for the Yugoslav Air Force and eight survived to fight the German invasion in 1941. It was followed by the IK-3 prototype, which resembled a Hurricane.
D.Donald "The Encyclopedia of World Aircraft", 1997

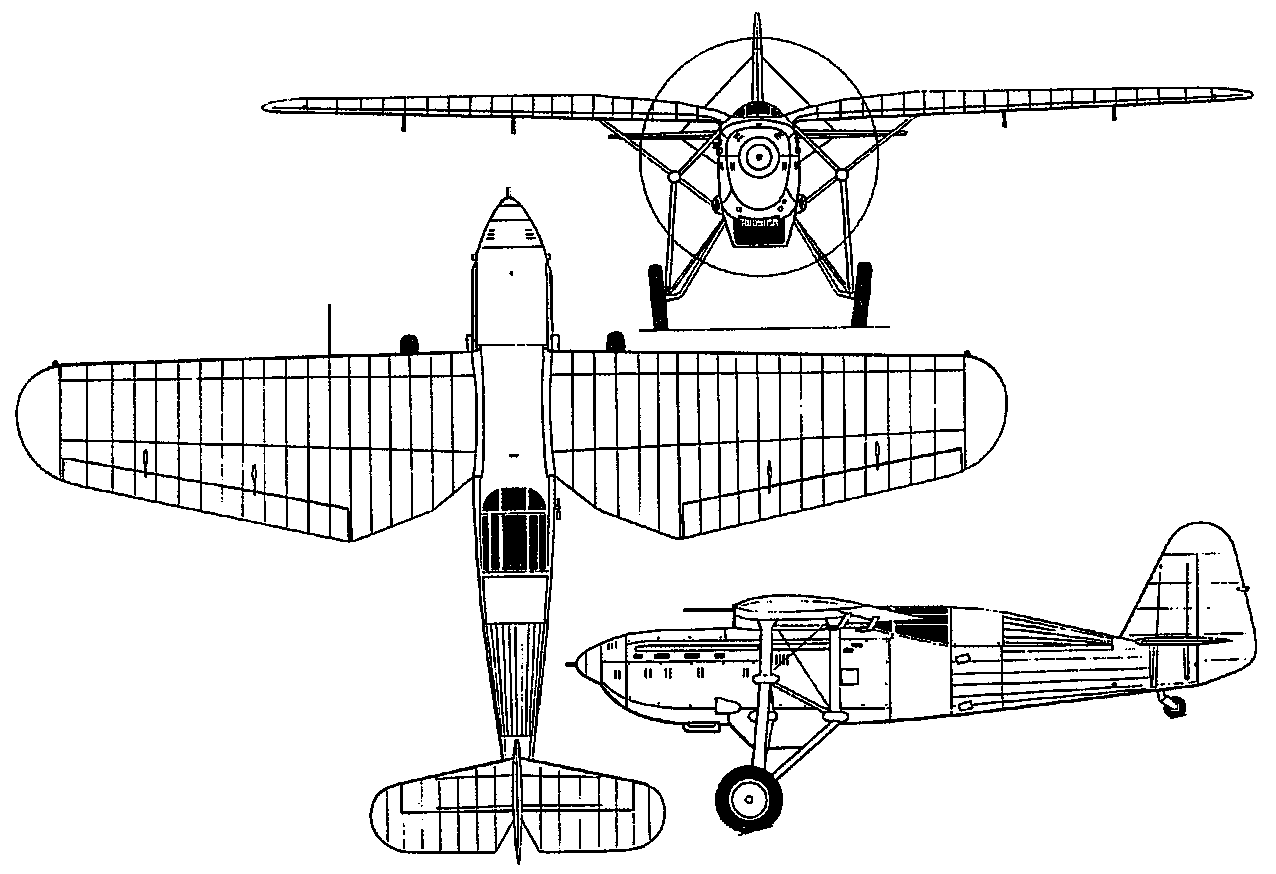

 | A three-view drawing (1276 x 874) |
| CREW | 1 |
| ENGINE | 1 x 860hp Hispano-Suiza 12Ycrs |
| WEIGHTS |
| Take-off weight | 1900 kg | 4189 lb |
| Empty weight | 1502 kg | 3311 lb |
| DIMENSIONS |
| Wingspan | 11.40 m | 37 ft 5 in |
| Length | 7.88 m | 26 ft 10 in |
| Height | 3.84 m | 13 ft 7 in |
| Wing area | 18 m2 | 193.75 sq ft |
| PERFORMANCE |
| Max. speed | 435 km/h | 270 mph |
| Cruise speed | 412 km/h | 256 mph |
| Ceiling | 10500 m | 34450 ft |
| Range | 400 km | 249 miles |
| ARMAMENT | 1 x 20mm cannon, 2 x 7.62mm machine guns |
| lxbfYeaa, e-mail, 15.11.2025 13:47 20 reply | | lxbfYeaa, e-mail, 07.11.2025 01:50 20 reply | | lxbfYeaa, e-mail, 07.11.2025 01:50 20 reply | | Barry, 08.01.2014 12:19 The Ikarus company was set up by Hugo Stinnes the man who effectively founded Arado in Germany reply |
|
| | MarcoO., e-mail, 16.09.2012 13:19 Further Data:Speed 428 km /h at 7440 mt; 340 km /h at S.L.(the 435 k /h data appears incorrect).
wing Area=18 square meters.
(From William Green's "Warplanes of the second world war-Volume 4")
Regars: Marco O. reply |
| lukasiak65, e-mail, 15.01.2010 20:35 FIRST FLIGHT-1935, CREW-1, ENGINE 1 x 860hp
WEIGHTS
Empty weight- 1438 kg, Loaded weight- 1930kg
DIMENSIONS
Wingspan-11.4 m Length-7,87m Height-3,84m
PERFORMANCE
Max. speed- 428-435km /h , cruise speed- 412km /h
Ceiling-10500 m , Range w /max.fuel 400 km
ARMAMENT-1 x 20mm + 2x7,92mm machine-guns, reply |
|
