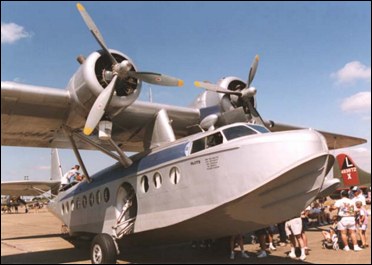

Sikorsky S-43 / JRS

Eleven-fifteen-passenger commercial amphibian powered by two 559kW Pratt & Whitney Hornet engines and known as the Baby Clipper as a smaller version of the S-42. Production aircraft went into service with Pan American Airways and a number of other airlines for operations in Norway, West Africa, Russia, China, Hawaiian and Philippine islands and South America. The US Navy/ Marine Corps and USAAC also used the type as a general-purpose aircraft.

Sikorsky S-43 / JRS

Specification
 MODELS-43
 CREW3-4
 PASSENGERS15
 ENGINE2 x 750hp Pratt-Whitney "Hornet"
 WEIGHTS
  Take-off weight8662 kg19097 lb
 DIMENSIONS
  Wingspan26.21 m86 ft 0 in
  Length15.60 m51 ft 2 in
  Height5.38 m18 ft 8 in
 PERFORMANCE
  Max. speed306 km/h190 mph
  Ceiling6310 m20700 ft
  Range1247 km775 miles

Sikorsky S-43 / JRS

The S-43 built for Howard Hughes for his planned round-the-world flight
