Piper PA-36 Pawnee Brave

1972

Back to the Virtual Aircraft Museum
  AGRICULTURAL AIRCRAFTVirtual Aircraft Museum / USA / Piper

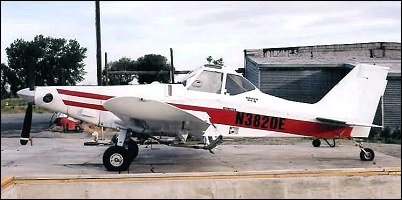

Piper PA-36 Pawnee Brave

Piper announced in 1972 a completely new version of the PA-25 Pawnee agricultural aircraft which introduced a more powerful Continental Tiara 6-285 flat-six engine of 213kW, a new cantilever wing, new safety features, filtration of the air entering the pilot's ventilated and heated cockpit, and a larger standard chemical hopper of 0.85m3 or, optionally, 1.08m3 capacity. Designated Piper PA-36 Pawnee Brave, the new model began to enter service in 1973, and in 1977 an additional version with a 224kW Avco Lycoming IO-540-K1G5 engine became available, the designations of these two aircraft then becoming PA-36 Pawnee Brave 285 and PA-36 Pawnee Brave 300. In 1978 this latter aircraft became the standard model, a new PA-36 Pawnee Brave 375 being introduced with a 280kW Avco Lycoming IO-720-D1CD flat-eight engine, and equipped with the larger of the two chemical hoppers as standard. These were to remain in production with Piper until rights for both versions of the PA-36 were acquired by WTA Inc. in 1981. This latter company was marketing this agricultural aircraft in two versions, the version with the 280kW engine now being the basic model and redesignated PA-36 New Brave 375. It was available optionally with a 298kW IO-720-D1C engine under the designation PA-36 New Brave 400.

3-View
Piper PA-36 Pawnee BraveA three-view drawing (1278 x 644)

Specification
 MODELPA-36 Pawnee Brave 300 Type
 CREW1
 ENGINE1 x Avco Lycoming IO-540-K1G5 flat-six piston engine, 224kW
 WEIGHTS
  Take-off weight1996 kg4400 lb
  Loaded weight989 kg2180 lb
 DIMENSIONS
  Wingspan11.89 m39 ft 0 in
  Length8.34 m27 ft 4 in
  Height2.29 m8 ft 6 in
  Wing area20.96 m2225.61 sq ft
 PERFORMANCE
  Cruise speed229 km/h142 mph
  Ceiling1950 m6400 ft
  Range740 km460 miles
