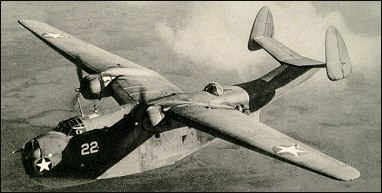

Martin 162 / PBM Mariner

The XPBM-1 prototype flying-boat patrol bomber was originally ordered by the US Navy in 1936. Before it was built, a quarter-size prototype (Model 162A) was constructed and flown. The full-size aircraft was flown for the first time in February 1939.

The production PBM-1 - fitted with two 1,192 kW Wright R-2600-6 radial engines, a dihedral tail and retractable wingtip floats - was ordered in 1938 and 20 of these went into Navy service in 1941. A single XPBM-2 was ordered at the same time as a long-range version specially strengthened for catapult take-off.

The PBM-3, with two 1,267kW Wright R-2600-12 engines, was ordered in quantity in 1940 and deliveries began in 1942. In this version the crew was increased from seven to nine, the armament was revised and the fuel capacity increased. The retractable wingtip floats of the PBM-1 were replaced by fixed floats. In 1942 the PBM-3 was adopted also as a naval transport carrying 20 passengers or 3,629-4,082kg of cargo (PBM-3R). Twenty-six PBM-3B patrol bombers were also used by RAF Coastal Command, delivered under Lend-Lease. At the end of the war a specialised anti-submarine version was also developed as the PBM-3S.

The final two production versions of the Mariner were the PBM-5 and PBM-5A, powered by 1,565kW R-2800-22 and R-2800-34 engines respectively. The last PBM-5A was delivered to the US Navy in April 1949. This version was basically an amphibious version of the PBM-5 and ended its career as a general utility aircraft.

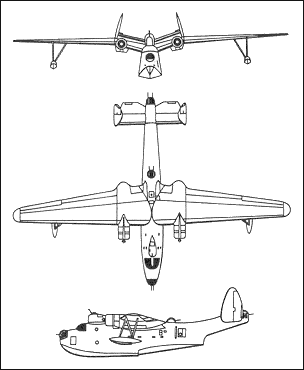

Martin 162 / PBM Mariner

Specification
 CREW7
 ENGINE2 x Wright A-5B, 1250kW
 WEIGHTS
  Take-off weight25400 kg55998 lb
  Empty weight14660 kg32320 lb
 DIMENSIONS
  Wingspan36.0 m118 ft 1 in
  Length34.4 m113 ft 10 in
  Height8.4 m28 ft 7 in
  Wing area130.0 m21399.31 sq ft
 PERFORMANCE
  Max. speed325 km/h202 mph
  Cruise speed240 km/h149 mph
  Ceiling6150 m20200 ft
 ARMAMENT8 x 12.7mm machine-guns, 2000kg of bombs
