General Atomics MQ-9 Reaper

2001

Back to the Virtual Aircraft Museum
  COMBAT DRONEVirtual Aircraft Museum / USA / General Atomics

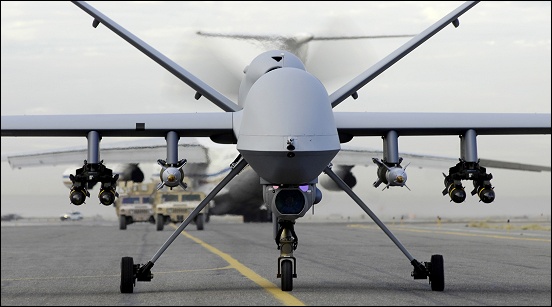

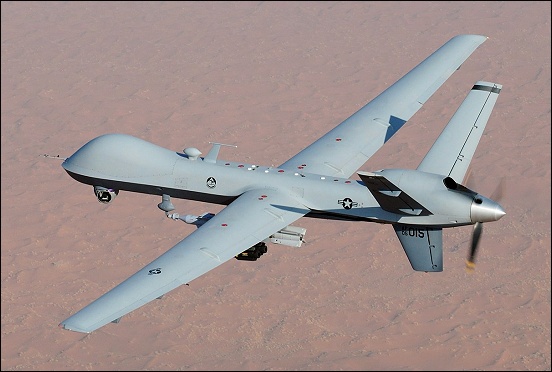

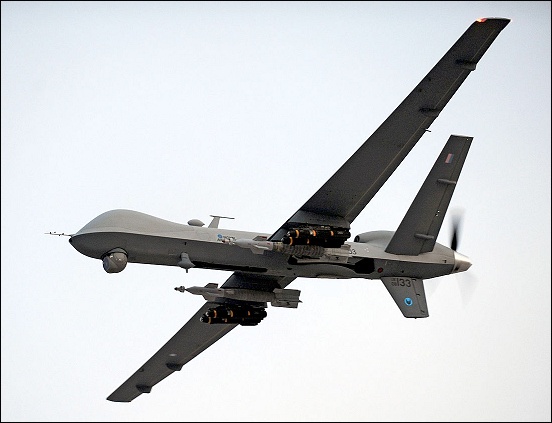

General Atomics MQ-9 Reaper

The MQ-9 Reaper (sometimes called Predator B) is an unmanned aerial vehicle (UAV) capable of remotely controlled or autonomous flight operations developed primarily for the United States Air Force (USAF).

The MQ-9 is the first hunter-killer UAV designed for long-endurance, high-altitude surveillance. It is a larger, heavier, and more capable aircraft than the earlier General Atomics MQ-1 Predator; it can be controlled by the same ground systems used to control MQ-1s. The Reaper has a 950hp turboprop engine (compared to the Predator's 115hp piston engine). The greater power allows the Reaper to carry 15 times more ordnance payload and cruise at about three times the speed of the MQ-1. The aircraft is monitored and controlled by aircrew in the Ground Control Station (GCS), including weapons employment.

The first prototype flew on 2 February 2001. On 1 May 2007, the USAF's 432d Wing was activated to operate MQ-9 Reaper as well as MQ-1 Predator UAVs at Creech Air Force Base, Nevada. The pilots first conducted combat missions in Iraq and Afghanistan in the summer of 2007. On 28 October 2007, the Air Force Times reported an MQ-9 had achieved its first "kill", successfully firing a Hellfire missile against Afghanistan insurgents in the Deh Rawood region of the mountainous Oruzgan province.

The USAF operated 195 MQ-9 Reapers as of September 2016, and plans to keep the MQ-9 in service into the 2030s.

By the end of 2019 more than 60 MQ-9s were shot down or lost due to various equipment failures.

External links

General Atomics MQ-9 Reaper

Specification
 ENGINE1 x 900 hp Honeywell TPE331-10 turboprop
 WEIGHTS
  Take-off weight4760 kg10494 lb
  Empty weight2223 kg4901 lb
 DIMENSIONS
  Wingspan20 m66 ft 7 in
  Length11 m36 ft 1 in
  Height3.81 m13 ft 6 in
 PERFORMANCE
  Max. speed482 km/h300 mph
  Cruise speed313 km/h194 mph
  Ceiling15000 m49200 ft
  Range1900 km1181 miles

General Atomics MQ-9 Reaper
