General Dynamics F-16XL

A company-funded development of the F-16 fighter with a new highly-swept 'cranked-arrow' wing with an area more than 120 per cent greater than standard, and a lengthened fuselage to increase internal fuel capacity by 82 per cent. This doubles the capacity for underwing ordnance. The prototype F-16XL was flown on 3 July 1980.

3-View

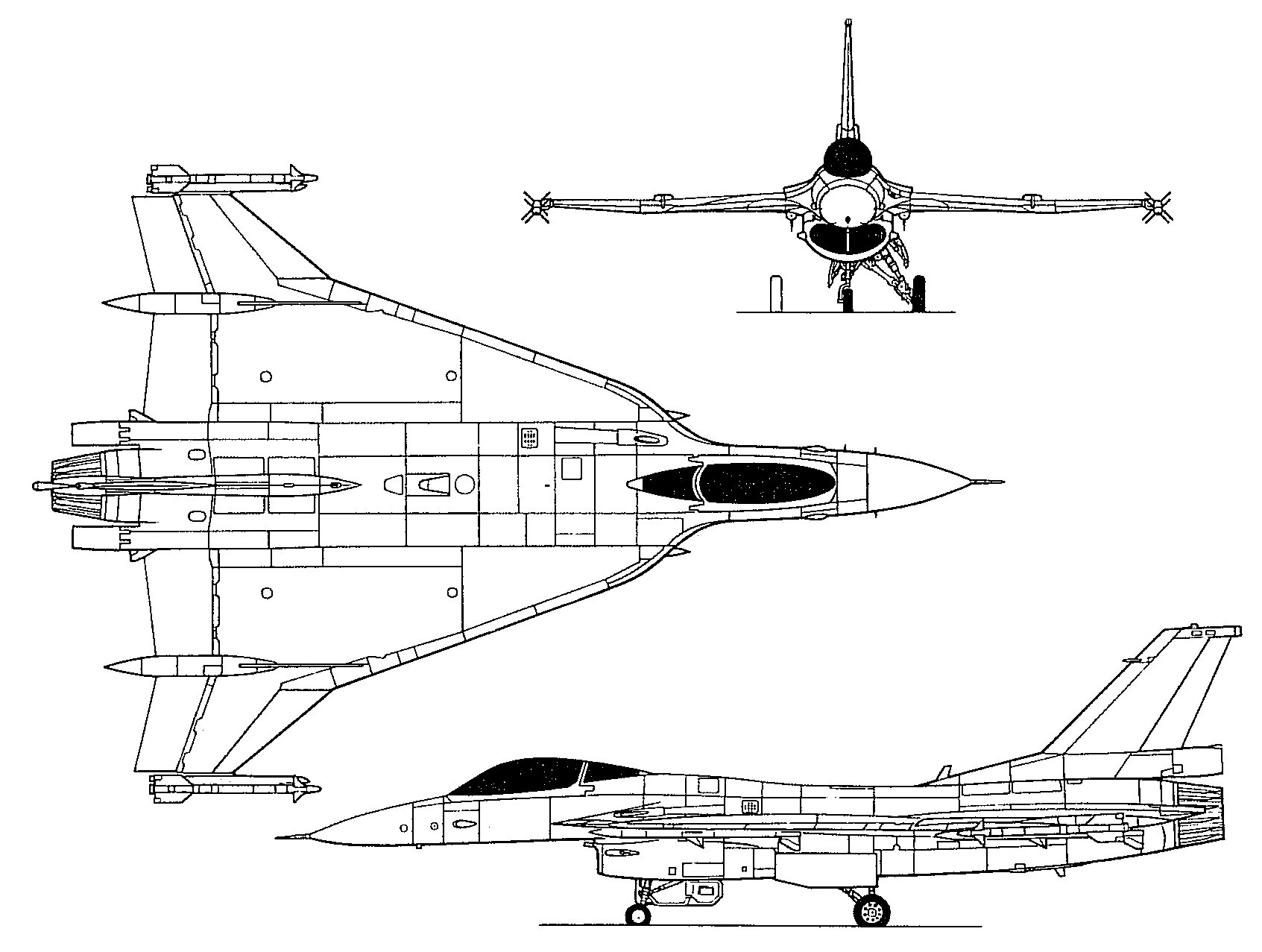

General Dynamics F-16XLA three-view drawing (1693 x 1277)

Specification
 MODELF-16E
 CREW1-2
 ENGINE1 x General Electric F110, 7700/13150kg
 WEIGHTS
  Take-off weight21770 kg47995 lb
 DIMENSIONS
  Wingspan10.4 m34 ft 1 in
  Length16.5 m54 ft 2 in
  Wing area62 m2667.36 sq ft
 PERFORMANCE
  Max. speed2200 km/h1367 mph
