Curtiss-Orenco D

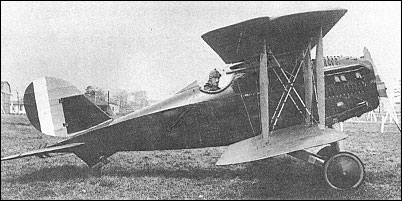

The first single-seat fighter of indigenous US design to achieve production status, the Model D was conceived around the 300hp Hispano-Suiza H eight-cylinder water-cooled engine. The first of four prototypes built by the Ordnance Engineering Corporation (Orenco) was completed in January 1919. Curtiss was assigned a production contract for 50 aircraft and undertook some redesign. This included the introduction of dihedral and overhanging, balanced ailerons, and revision of the engine installation. Of wooden construction with plycovered fuselage and fabric-covered wings, the Curtiss- built Model D utilised a 330hp Wright-built derivative of the French engine and carried an armament of two 7.62mm machine guns, deliveries commencing in August 1921. One Model D was experimentally fitted with French Lamblin radiators attached to the fuselage sides, and another was fitted with a turbo-supercharger for high altitude trials.

3-View

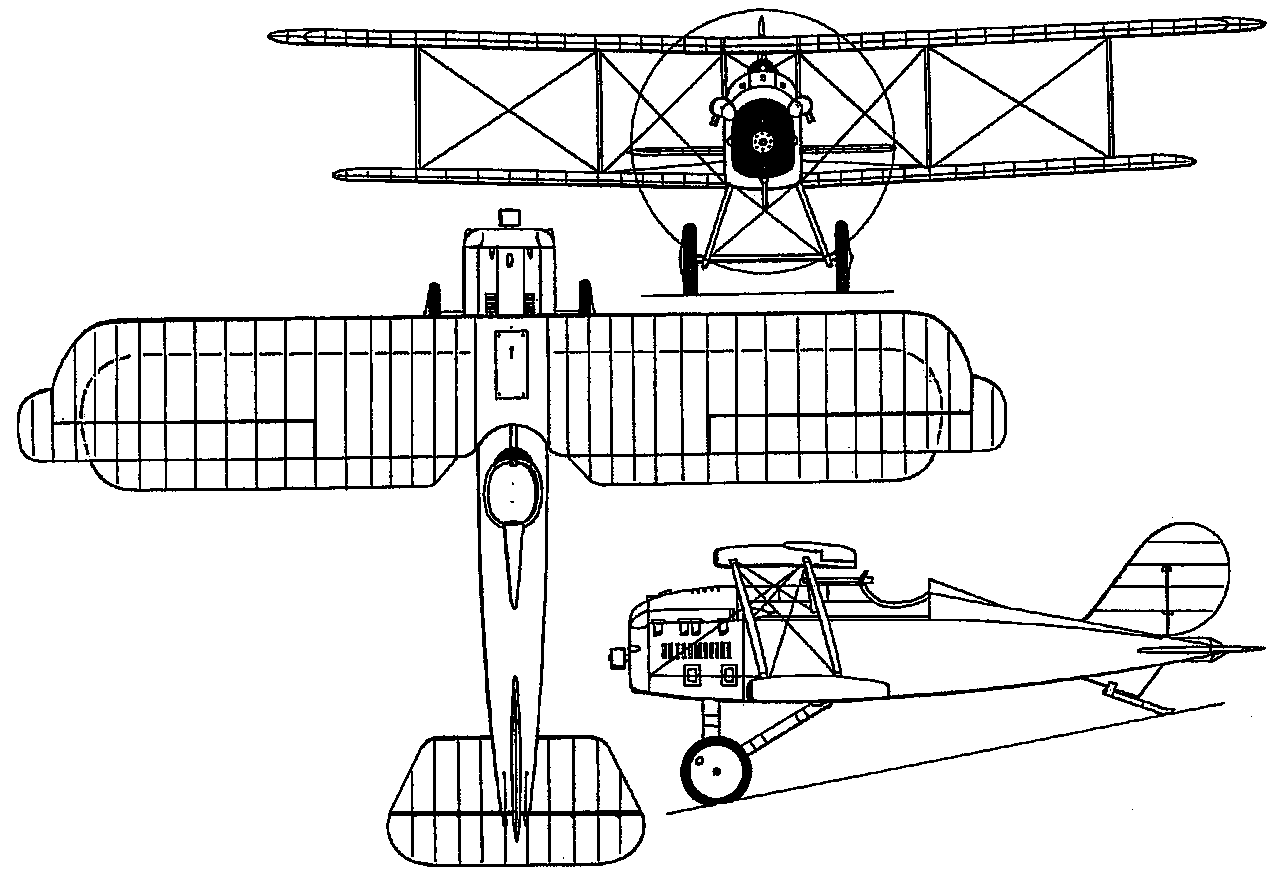

Curtiss-Orenco DA three-view drawing (1280 x 878)

Specification
 WEIGHTS
  Take-off weight1279 kg2820 lb
  Empty weight865 kg1907 lb
 DIMENSIONS
  Wingspan10.05 m33 ft 12 in
  Length6.54 m21 ft 5 in
  Height2.54 m8 ft 4 in
  Wing area25.36 m2272.97 sq ft
 PERFORMANCE
  Max. speed224 km/h139 mph

Comments
Lou, e-mail, 10.07.2012 00:35

I read a french article on this plane that stated that curtiss used the mock-up wing that orenco had supplied to them as a template. The wing eventually failed in more than one aircraft and all the ORENCO D's were grounded and taken out of service.
