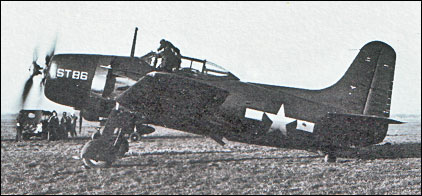

| In late 1943 Curtiss received a US Navy order for two single-seat torpedo-bomber aircraft prototypes under the designation XBTC-1. A clean-looking low-wing monoplane with considerable dihedral on the outer wing panels, retractable tailwheel landing gear and a 2237kW Pratt & Whitney R-4360-14 Wasp Major engine, the Curtiss Model 96 promised performance that should assure a production order. Before the first flew, a slightly different version of the R-4360 engine was installed in each aircraft, bringing the redesignation XBTC-2. However, Curtiss was now in competition with Douglas, Fleetwings and Martin for this requirement, losing out to Douglas and Martin whose contenders were produced as the AD-1 Skyraider and AM Mauler respectively.
In March 1945 Curtiss gained a contract for 10 of the generally similar XBT2C-1. This Model 98 differed by having a lower-powered Wright R-3350-24 engine, reduced armament,
accommodation for a crew of two and a search radar pod mounted beneath the starboard wing. Only nine of the 10 were built, and these were the last Curtiss-built aircraft for the US Navy.
| MODEL | Curtiss XBT2C-1 |
| ENGINE | 1 x 1864kW Wright R-3350-24 radial piston engine |
| WEIGHTS |
| Take-off weight | 8618 kg | 19000 lb |
| Empty weight | 5565 kg | 12269 lb |
| DIMENSIONS |
| Wingspan | 14.50 m | 48 ft 7 in |
| Length | 11.94 m | 39 ft 2 in |
| Height | 3.68 m | 12 ft 1 in |
| Wing area | 38.65 m2 | 416.02 sq ft |
| PERFORMANCE |
| Max. speed | 531 km/h | 330 mph |
| Ceiling | 8015 m | 26300 ft |
| Range | 2108 km | 1310 miles |
| ARMAMENT | 2 x 20mm cannon, 907kg of bombs |
| Brad Pollock, e-mail, 31.03.2026 10:48 My special appreciation and gratitude to the team of Morphohack Cyber Professionals who was able to help me fully recover my 1.1BTC and ETH tokens after I was a victim of a forex trader scam.
I’m very pleased for their efforts in helping me recover my assets, and I am here to recommend their services, not because they want me to but to enlighten other people about crypto trading scam and how to recover their funds if they ever need to. Morphohack Cyber Professionals are very dedicated in their services, providing support. I was able to claim back my funds completely , and I contacted them through their email address Morphohack@cyberservices.com
Do not hesitate to reach out to them. reply | | Joffrey Martinez, e-mail, 24.11.2023 20:57 Jerrylink Credit Group has made a huge impact in my life. When I was in college, I unfortunately had to rely on my credit cards to help me with my expenses. By the time I finished college, I was unable to pay back a lot of those debts. As a result of that I ended up with a very low credit score and quite a few collections, so I sought out Jerrylink Credit Group. They were able to make a huge impact on my credit score. It went from the 500’s to the 700’s in a couple weeks. I couldn’t believe it. With that help, I was able to do so much more, lower the interest rate on financing my car, and to get approved for a great travel credit card which has really helped us while planning our wedding now. It’s been absolutely wonderful and I’m appreciative because I didn’t believe this process. Recommending as promised, you can reach out to them via: JERRYLINKGROUP@GMAIL.COM or text 626 514 0620. reply | | goutou, 21.06.2011 07:23 The photo shows that the landing gear still sports landing gear panels. I think they disappeared on the -5. Getting photos on-line showing any distinction in the variants from -2 to the -5 are difficult. reply | | Alan G, e-mail, 05.06.2010 20:01 Bill Schultz, if you're still reading this site please drope me a note. Like to talk to you about the SB2C photo you have. Email is ag122651 at hotmail dot com reply | |
| | Mark Murdock, e-mail, 09.02.2010 14:27 It looks so much like a Grumman Bearcat. reply | | Bill Schultz, e-mail, 30.10.2007 23:29 Morphing the SB2C into the XBTC-1 seems to have some unknows for me.
It sounds like the inital request for the XBTC-1 called for the P /W 4360 and the use of the contra-rotating props. When that fell short...(probably the same bugaboo that killed the A2D, gearing problems)... the Navy came back and asked for a version with the Wright 3350. Seems reasonable.
I have a photo of an SB2C, possibly a -3 0r -4 variant with a very long engine nacelle from front back to the cowl flaps. I wonder if it was the testbed for the W-3350. It is not swinging a three blade /contra-rotating prop so if it was a testbed then probably not for the P /W 4360 package. Has anyone any ideas or comments about this possibility? If so, where can I find some clarification short of going to the C /W History Center.
The photo shows that the landing gear still sports landing gear panels. I think they disappeared on the -5. Getting photos on-line showing any distinction in the variants from -2 to the -5 are difficult.
Regards...Bill Schultz reply |
|
