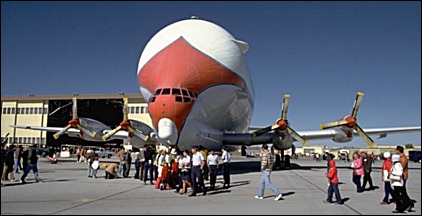

Aero Spacelines 377SG Super Guppy

The B-377PG Pregnant Guppy was followed by an even larger B-377SG Super Guppy: this featured not only an outsize fuselage, with a cargo compartment measuring 33.17m in overall length, 7.62m in width, and 7,77m in height, but also an increased wing span and four 5220kW turboprop engines. This Super Guppy was also used in the American space programme, it being the only aircraft able to carry the third stage of a Saturn V launch vehicle, and the Lunar Module adapter.

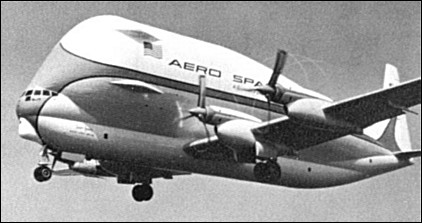

Aero Spacelines 377SG Super Guppy

Specification
 MODEL377SG "Super Guppy"
 CREW3-4
 ENGINE4 x Pratt-Whitney T-34P7 turboprops, 4500kW
 WEIGHTS
  Take-off weight79400 kg175048 lb
  Empty weight47600 kg104941 lb
  Payload18500kg40786 lb
 DIMENSIONS
  Wingspan47.7 m157 ft 6 in
  Length43.1 m141 ft 5 in
  Height11.7 m38 ft 5 in
 PERFORMANCE
  Max. speed480 km/h298 mph
  Ceiling6000 m19700 ft
