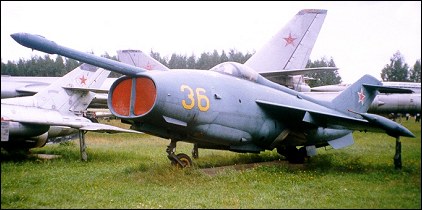

| Development of a V/STOL fighter for the Soviet navy's new 'Kiev' class of aircraft-carriers began during the early 1960s. Intensive studies bore fruit in the shape of a number of Yakovlev Yak-36 "Freehand'"research aircraft, with a bicycle undercarriage under the fuselage augmented by wingtip outriggers. The aircraft is believed to have been powered by a pair of 36.78kN Koliesov engines, each with a rotating nozzle. These gave a tremendous thrust margin, and powerful autostabilisers gave a rock-steady hover, using reaction control 'puffer jets' in the tail, wingtips and at the tip of a long nose-probe. The Yak-36 was not an operational aircraft, although it did lead directly to the Yak-38.
CREW | 1 |
ENGINE | 2 x RD-27-300, 53.0kN |
WEIGHTS |
Take-off weight | 8900 kg | 19621 lb |
DIMENSIONS |
Wingspan | 10.5 m | 34 ft 5 in |
Length | 17.0 m | 56 ft 9 in |
Height | 4.5 m | 15 ft 9 in |
PERFORMANCE |
Max. speed | 1010 km/h | 628 mph |
Ceiling | 12000 m | 39350 ft |
ARMAMENT | bombs and missiles on 2 hardpoints |

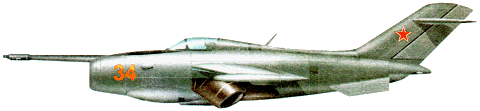

 | A three-view drawing (750 x 700) |
Red Phoenix, 11.05.2012 07:50 Luna, some fast checking shows that the Yak-36s used R-27-300 engines. Dunno if accurate or not, though. reply | E. J. Luna, e-mail, 31.03.2008 03:08 He would be interesting to know with certainty which were the motors used in the prototypes. they were Tumanskii R-11, R-13 or R-27? My opinion is that the last one is turbofan and at the time of the Yak-36 they did not exist. reply |
